Description:The PS9905 is optically coupled isolator containing an AlGaAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for the PS9905-Y-F3-AX, such as keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its specified temperature range.
The PS9905-Y-F3-AX has built-in ESD protection diodes on its input and output pins. However, it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, Renesas recommends using a latch-up prevention circuit, such as a resistor-capacitor (RC) network, on the input pins.
The PS9905-Y-F3-AX is a commercial-grade device, but Renesas offers a version with enhanced reliability and quality control for high-reliability applications, such as automotive or industrial systems. Contact Renesas for more information on their high-reliability product offerings.
Renesas provides radiation tolerance and immunity specifications for their devices in their radiation hardness assurance (RHA) documents, which can be found on their website. The PS9905-Y-F3-AX is not specifically designed for radiation-hardened applications, but Renesas offers radiation-tolerant devices for space and high-reliability applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS9905-Y-F3-AX Overview

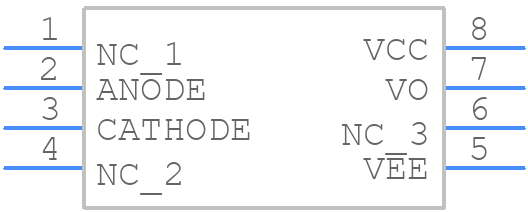

Use the download button to access the PS9905-Y-F3-AX schematic symbol, PCB footprint, and 3D model.
