PSA05-11EWA - Kingbright

Description: LED Displays & Accessories AlphaNum Red 625nm Common Anode

Download PSA05-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

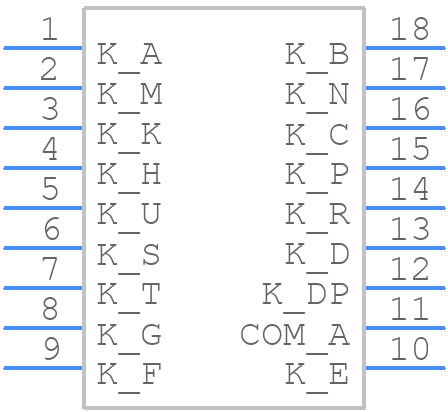

Symbol
PSA05-11EWA - Kingbright - PCB symbol
click to zoom

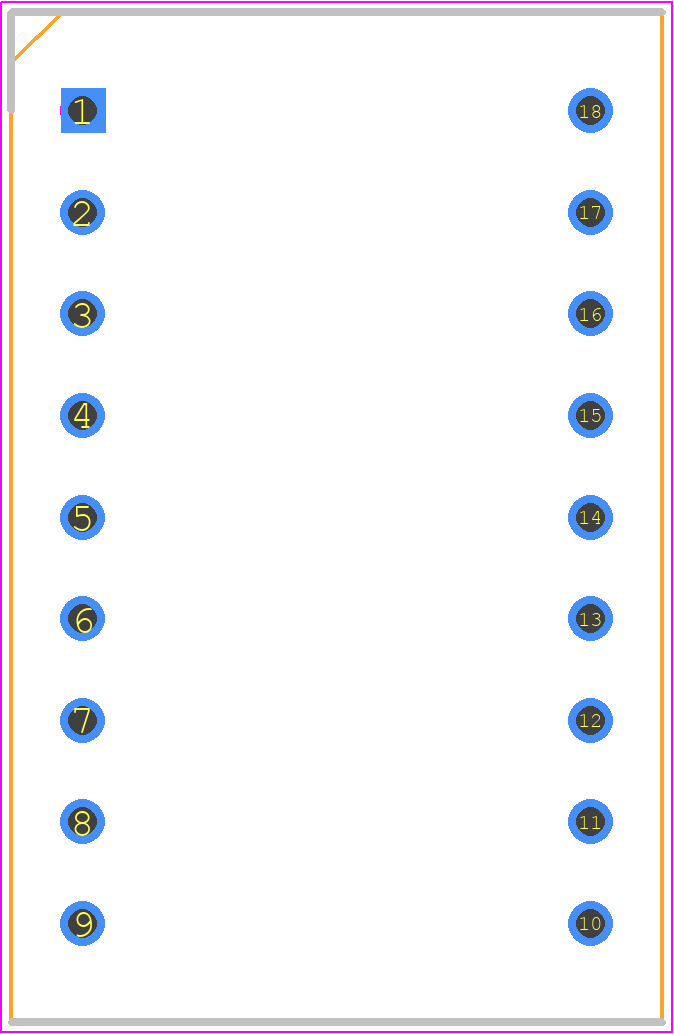

PCB Footprints
PSA05-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18-DIP (0.500", 12.70mm)
click to zoom

PSA05-11EWA Details

  • Manufacturer Part Number:

    PSA05-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.85

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    12.7 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

PSA05-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSA05-11EWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, PSA05-11EWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The typical junction temperature of PSA05-11EWA is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, PSA05-11EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's soldering profile to prevent damage.
  • The recommended reflow soldering temperature profile for PSA05-11EWA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSA05-11EWA Overview

Use the download button to access the PSA05-11EWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PSA05, or try a keyword search, such as LED Displays
