PSA05-11GWA footprint, schematic symbol and 3D model by Kingbright

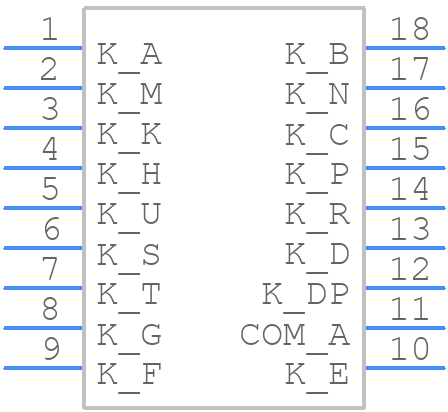

Symbol

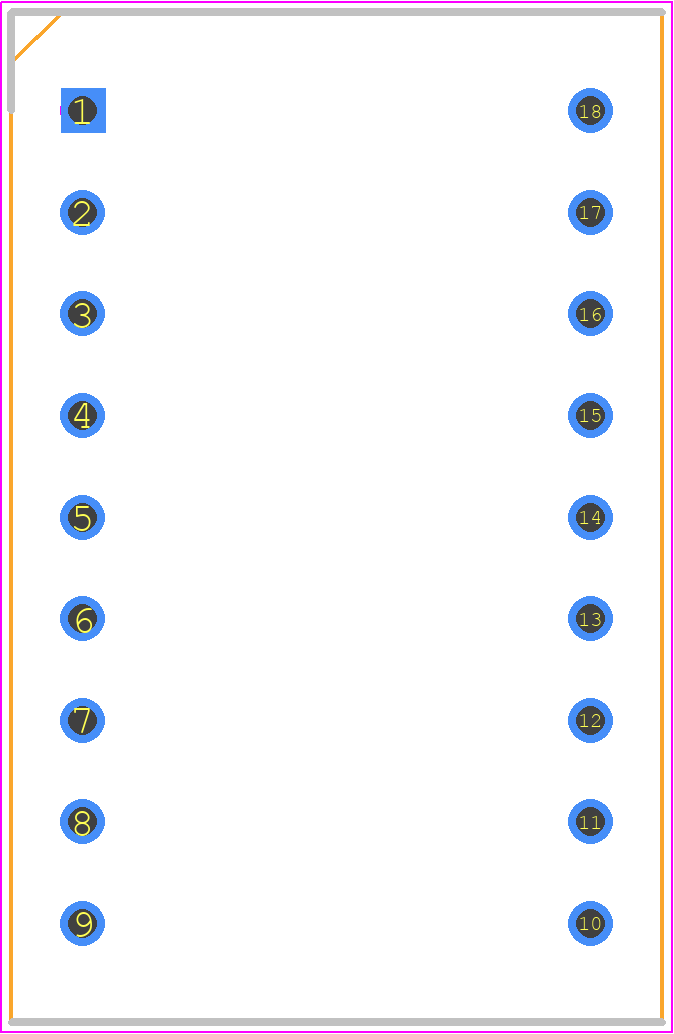

PCB Footprints

3D Models

PSA05-11GWA Details

The recommended storage temperature for PSA05-11GWA is -20°C to 30°C, with a relative humidity of 60% or less.
While PSA05-11GWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from moisture and UV radiation. However, its performance and lifespan may be affected by exposure to direct sunlight, high temperatures, and humidity.
The maximum soldering temperature for PSA05-11GWA is 260°C for 3 seconds. Exceeding this temperature or time may damage the LED.
PSA05-11GWA is designed to withstand normal vibration levels, but it may not be suitable for high-vibration applications. If you need to use it in a high-vibration environment, consider using additional mechanical support or reinforcement to prevent damage.
The recommended reflow soldering profile for PSA05-11GWA is a peak temperature of 240°C to 250°C, with a dwell time of 30 seconds to 60 seconds. The temperature should rise at a rate of 3°C to 5°C per second, and the cooling rate should be 3°C to 5°C per second.

Community Provided

System Verified

Community Approved

Use the download button to access the PSA05-11GWA schematic symbol, PCB footprint, and 3D model.
