PSA05-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Anode 1.85V 10mA 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm) 18-DIP (0.500", 12.70mm)

Download PSA05-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

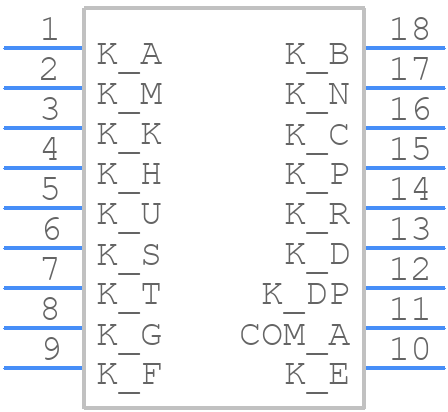

PSA05-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

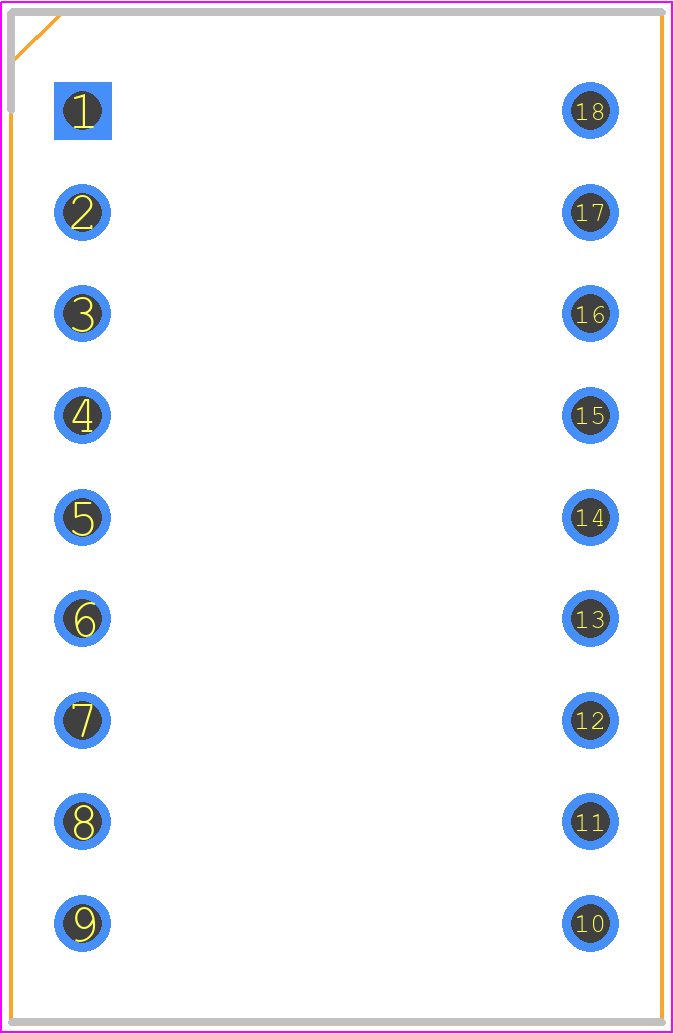

PSA05-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - PSA05-11SURKWA
click to zoom
3D Models
PSA05-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - PSA05-11SURKWA
click to zoom

PSA05-11SURKWA Details

  • Manufacturer Part Number:

    PSA05-11SURKWA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.85

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    12.7 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

PSA05-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSA05-11SURKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, PSA05-11SURKWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The typical junction temperature of PSA05-11SURKWA is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, PSA05-11SURKWA can be driven with a PWM signal, but it's recommended to use a frequency above 100 Hz to avoid flicker and ensure stable operation.
  • The recommended soldering temperature for PSA05-11SURKWA is 260°C, and the recommended soldering time is 3 seconds or less to prevent thermal damage.
