PSA08-11GWA footprint, schematic symbol and 3D model by Kingbright

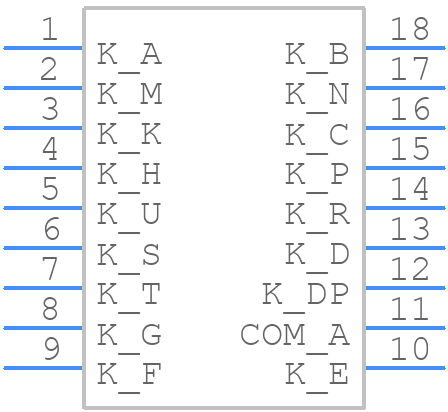

Symbol

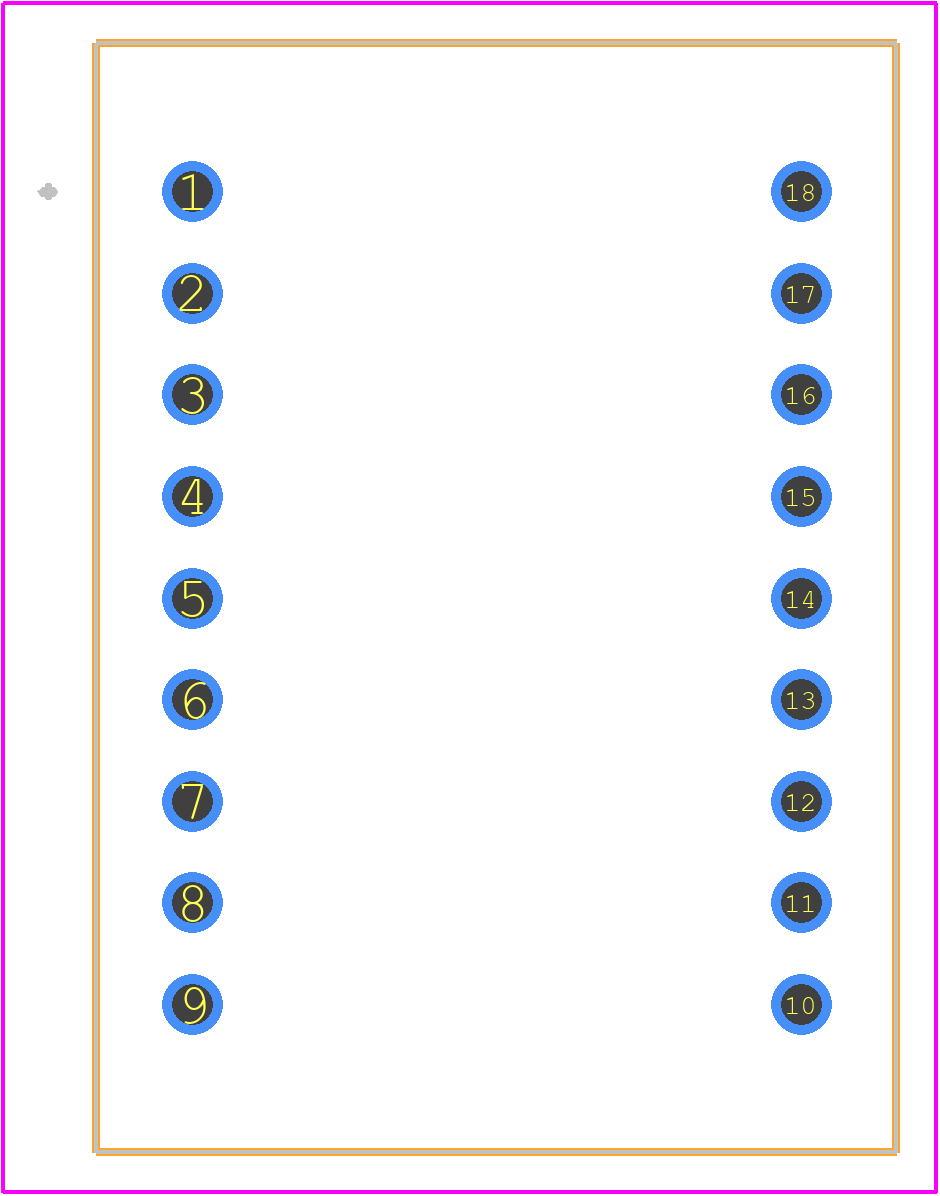

PCB Footprints

3D Models

PSA08-11GWA Details

The recommended storage temperature for PSA08-11GWA is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, PSA08-11GWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect it from moisture and UV radiation.
The maximum soldering temperature for PSA08-11GWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, PSA08-11GWA is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium above the allowed limits.
The typical lifespan of PSA08-11GWA is 50,000 hours or more, depending on the operating conditions and usage.

Expert Contribution

System Verified

Community Approved

Use the download button to access the PSA08-11GWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PSA08, or try a keyword search, such as LED Displays
