PSA08-11SRWA - Kingbright

Description: LED Displays & Accessories AlphaNum Red 640nm Common Anode

Download PSA08-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

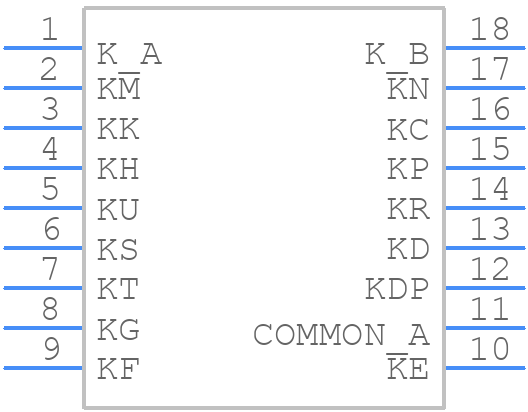

PSA08-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

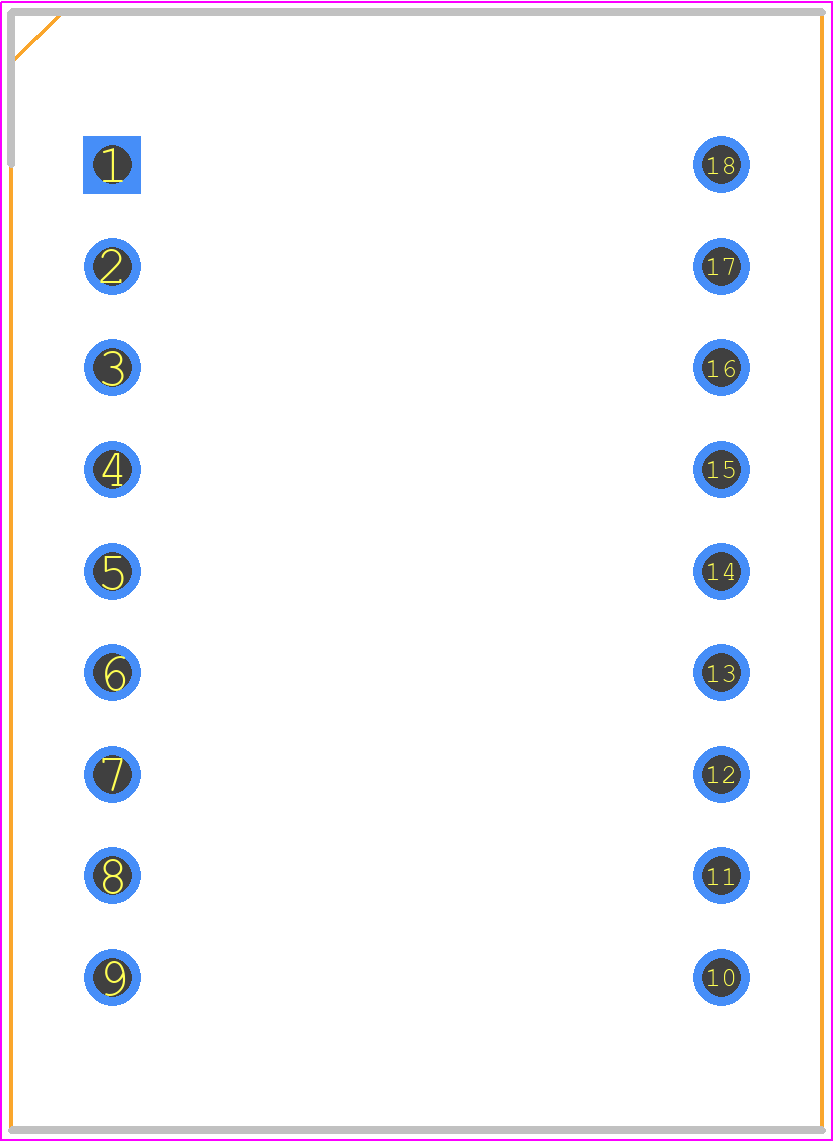

PSA08-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-18(Height=8.75mm)
click to zoom

PSA08-11SRWA Details

  • Manufacturer Part Number:

    PSA08-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Color:

    SUPER BRIGHT RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

PSA08-11SRWA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3-5 seconds.
  • Yes, the PSA08-11SRWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV degradation.
  • The maximum forward current is 30mA, but it's recommended to operate at 20mA or less for optimal lifespan and reliability.
  • Yes, the PSA08-11SRWA is designed to withstand vibrations up to 10G, but it's recommended to secure the LED properly to prevent mechanical stress.
  • Yes, the PSA08-11SRWA is RoHS and REACH compliant, making it suitable for use in EU and other regions with similar regulations.
