PSA08-11SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Anode 1.85V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)

Download PSA08-11SURKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PSA08-11SURKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

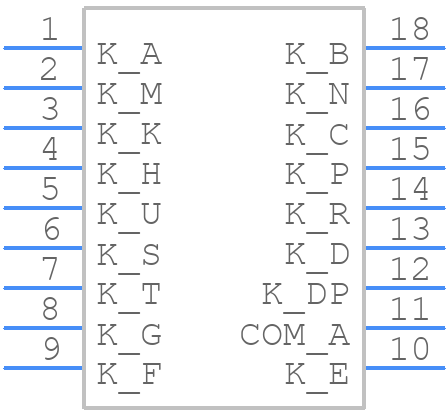

PSA08-11SURKWA - Kingbright - PCB symbol

PCB Footprints

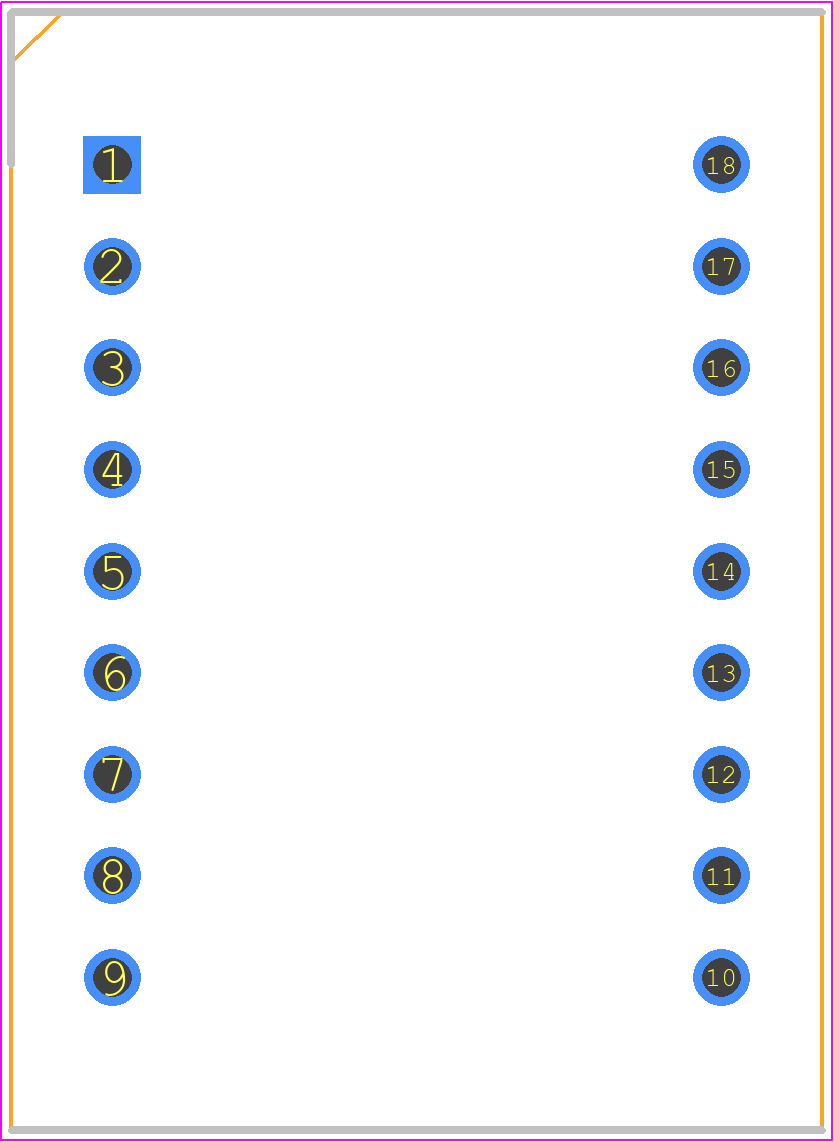

PSA08-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-18-(Height=8.75mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSA08-11SURKWA
Part Number PSA08-11SURKWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-18-(Height=8.75mm)
Released Date Sep 28, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PSA08-11SURKWA Details

Manufacturer Part Number:
PSA08-11SURKWA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.85
Color:
HYPER RED
Color@Wavelength:
Red
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
20.32 mm
Forward Current-Max:
0.03 A
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
16 SEG ALPHANUMERIC LED DISPLAY

PSA08-11SURKWA Frequently Asked Questions (FAQs)

The recommended storage temperature for PSA08-11SURKWA is -40°C to 100°C.
Yes, PSA08-11SURKWA is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
The typical forward voltage drop of PSA08-11SURKWA is around 2.0-2.5V at 20mA.
Yes, PSA08-11SURKWA is suitable for outdoor applications, with a moisture sensitivity level of 3 and a operating temperature range of -40°C to 85°C.
The recommended soldering time for PSA08-11SURKWA is within 3 seconds, with a soldering temperature of 240°C ± 5°C.
