PSA08-11YWA - Kingbright

Description: Display Modules - LED Character and Numeric Yellow 16-Segment, Alphanumeric 1 Character Common Anode 2.1V 20mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)

Download PSA08-11YWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PSA08-11YWA model

Email notifications will be applied after download.

Send part feedback

Symbol

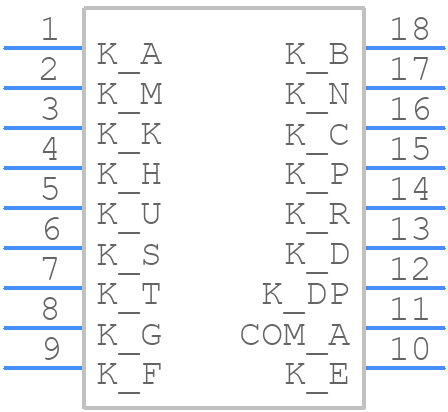

PSA08-11YWA - Kingbright - PCB symbol

PCB Footprints

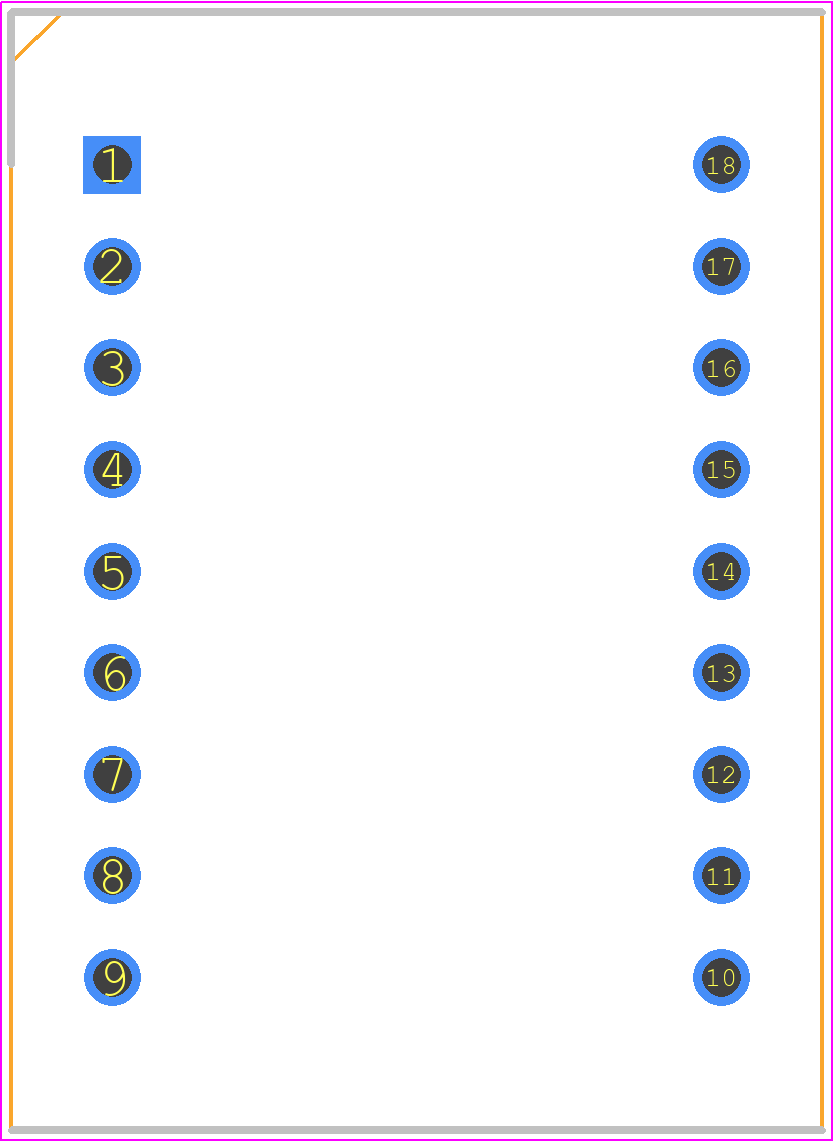

PSA08-11YWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 27.7mmx20mm

3D Models

PSA08-11YWA - Kingbright - 3D model - Dual-In-Line Sockets - 27.7mmx20mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSA08-11YWA
Part Number PSA08-11YWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 27.7mmx20mm
Released Date Oct 30, 2023
Last Modified Date Sep 29, 2025 3:16 AM UTC
Pinout / Pin List Click Here (Member Only)

PSA08-11YWA Details

Manufacturer Part Number:
PSA08-11YWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.85
Color:
YELLOW
Color@Wavelength:
Yellow
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
20.32 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2 V
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
16 SEG ALPHANUMERIC LED DISPLAY
Peak Wavelength:
590 nm

PSA08-11YWA Frequently Asked Questions (FAQs)

The recommended storage temperature for PSA08-11YWA is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, PSA08-11YWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect it from moisture and UV radiation.
The maximum soldering temperature for PSA08-11YWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, PSA08-11YWA is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium above the allowed limits.
The typical lifespan of PSA08-11YWA is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

Community Provided

System Verified

Community Approved

PSA08-11YWA Overview

Use the download button to access the PSA08-11YWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PSA08, or try a keyword search, such as LED Displays
