PSA08-12SRWA - Kingbright

Description: LED Displays & Accessories AlphaNum Red 640nm Common Anode

Download PSA08-12SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

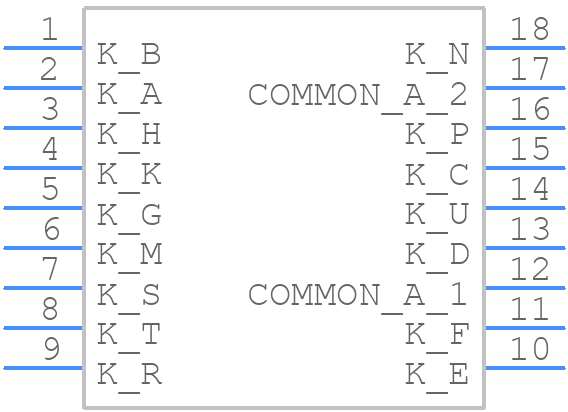

PSA08-12SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints
PSA08-12SRWA - Kingbright PCB footprint - Other - Other - PSA08-12SRWA-1
click to zoom
3D Models
PSA08-12SRWA - Kingbright - 3D model - Other - PSA08-12SRWA-1
click to zoom

PSA08-12SRWA Details

  • Manufacturer Part Number:

    PSA08-12SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Color:

    SUPER BRIGHT RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

PSA08-12SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for PSA08-12SRWA is -40°C to 100°C.
  • Yes, PSA08-12SRWA is suitable for outdoor use due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
  • The typical forward voltage drop of PSA08-12SRWA is around 2.0-2.5V at a forward current of 20mA.
  • Yes, PSA08-12SRWA can be used in high-temperature applications up to 85°C, but its luminous intensity may decrease at higher temperatures.
  • Yes, PSA08-12SRWA is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
