PSA12-11SRWA - Kingbright

Description: LED Displays & Accessories Super Red Diffused Single Alphanumeric

Download PSA12-11SRWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PSA12-11SRWA model

Email notifications will be applied after download.

Send part feedback

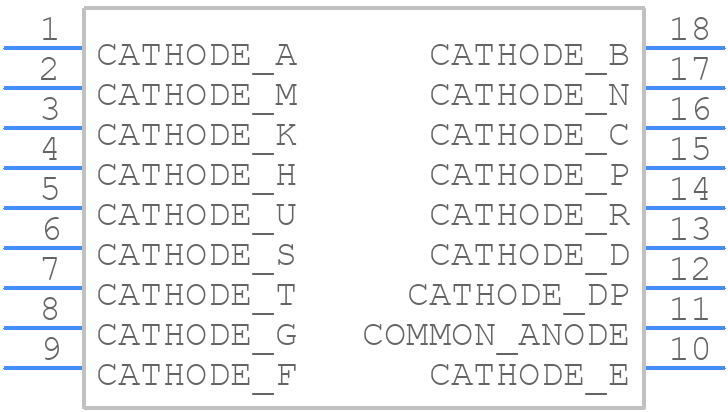

Symbol

PSA12-11SRWA - Kingbright - PCB symbol

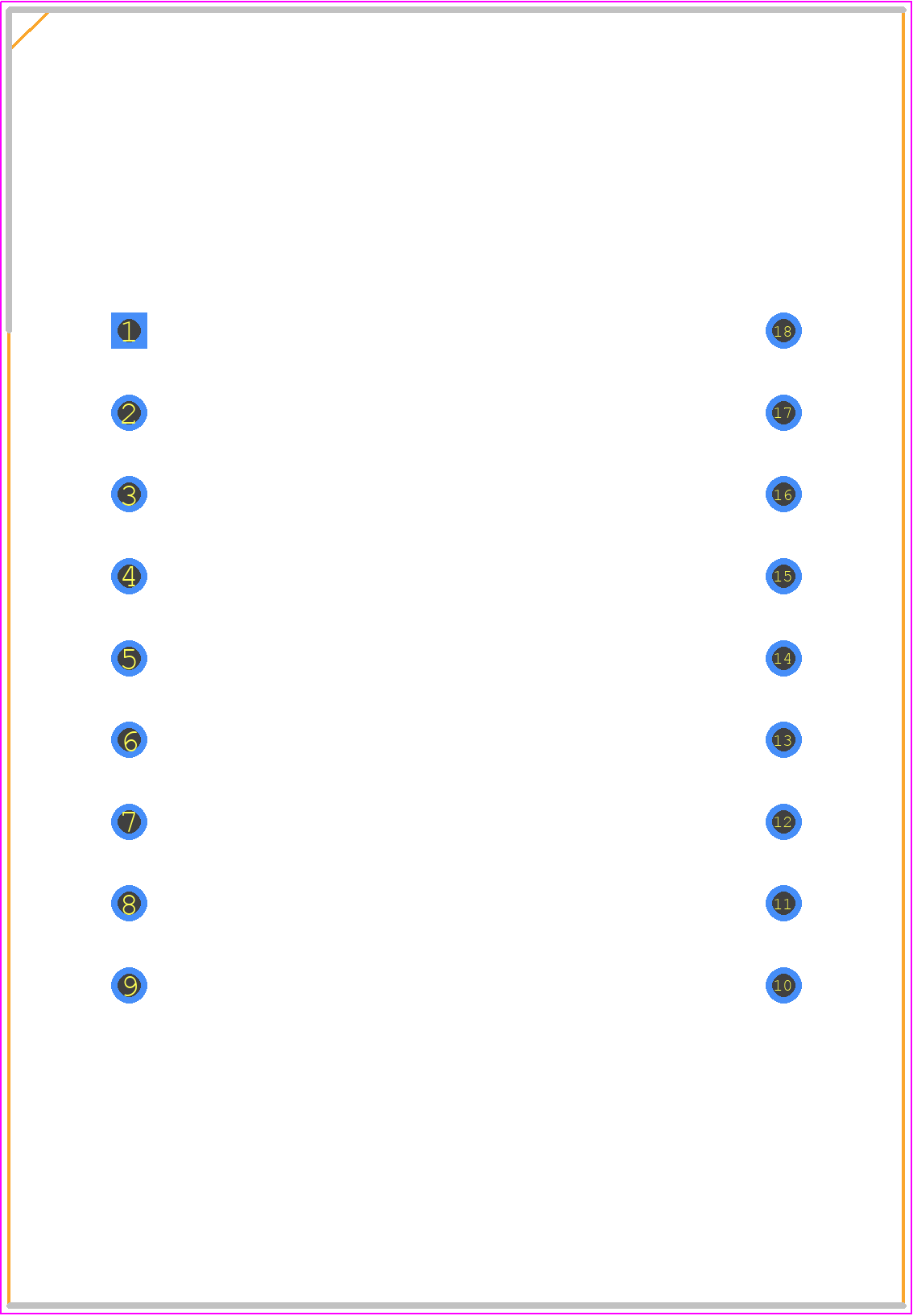

PCB Footprints

PSA12-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-18

3D Models

PSA12-11SRWA - Kingbright - 3D model - Dual-In-Line Sockets - DIP-18

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSA12-11SRWA
Part Number PSA12-11SRWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-18
Released Date Dec 10, 2019
Last Modified Date Sep 13, 2024 10:48 AM UTC
Pinout / Pin List Click Here (Member Only)

PSA12-11SRWA Details

Manufacturer Part Number:
PSA12-11SRWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.85
Color:
SUPER BRIGHT RED
Color@Wavelength:
Red
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
30.48 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
16 SEG ALPHANUMERIC LED DISPLAY
Peak Wavelength:
660 nm

PSA12-11SRWA Frequently Asked Questions (FAQs)

The recommended storage temperature for PSA12-11SRWA is -40°C to 100°C.
Yes, PSA12-11SRWA is suitable for outdoor use due to its waterproof rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes.
The typical forward voltage drop of PSA12-11SRWA is around 2.0-2.5V at a forward current of 20mA.
Yes, PSA12-11SRWA is designed to withstand high vibrations and can be used in applications with vibrations up to 10G.
The recommended soldering temperature for PSA12-11SRWA is 260°C for 3 seconds or less.
