PSA39-21GWA - Kingbright

Description: Display Modules - LED Character and Numeric Green 14-Segment, Alphanumeric 1 Character Common Anode 2.2V 20mA 0.820" H x 0.390" W x 0.380" D (20.83mm x 9.91mm x 9.65mm) 16-DIP (0.300", 7.62mm)

Download PSA39-21GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

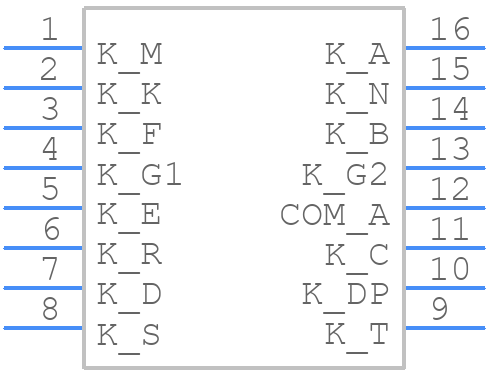

PSA39-21GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

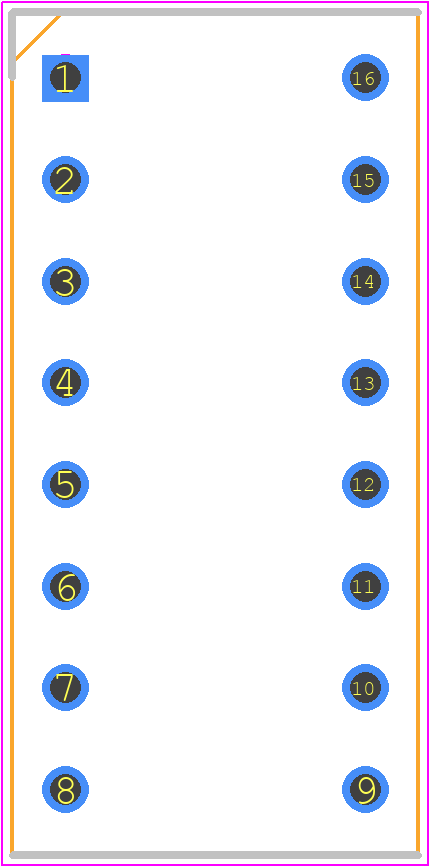

PSA39-21GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 16-DIP (0.300", 7.62mm)
click to zoom
3D Models
PSA39-21GWA - Kingbright - 3D model - Dual-In-Line Sockets - 16-DIP (0.300", 7.62mm)
click to zoom

PSA39-21GWA Details

  • Manufacturer Part Number:

    PSA39-21GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.9 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

PSA39-21GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSA39-21GWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, PSA39-21GWA can be used in outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture and UV damage.
  • The typical junction temperature of PSA39-21GWA is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, PSA39-21GWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to prevent damage.
  • The recommended reflow temperature for PSA39-21GWA is 260°C, with a peak temperature of 240°C for a maximum of 10 seconds.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSA39-21GWA Overview

Use the download button to access the PSA39-21GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSA39, or try a keyword search, such as LED Displays
