PSA39-21SRWA - Kingbright

Description: LED Displays & Accessories AlphaNum Red 640nm Common Anode

Download PSA39-21SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

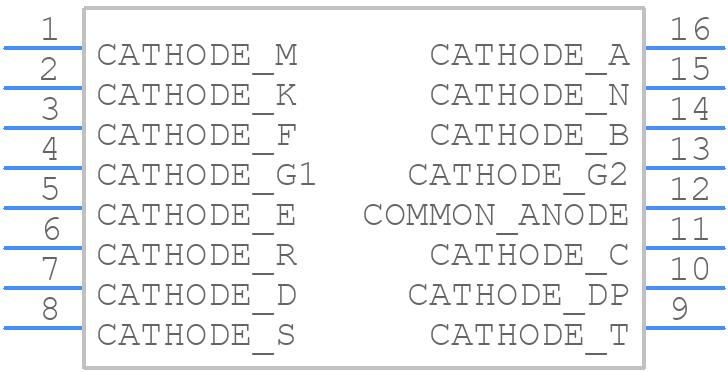

PSA39-21SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

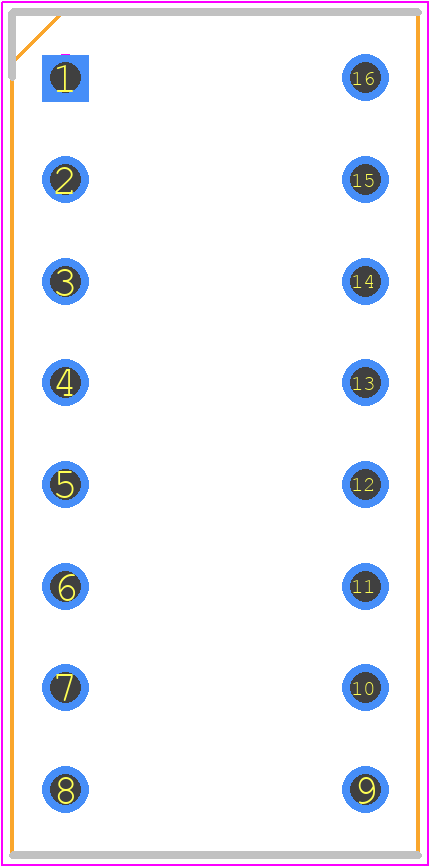

PSA39-21SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 9.9mm (0.39 INCH) 14 SEGMENT SINGLE DIGIT ALPHANUMERIC DISPLAY
click to zoom

PSA39-21SRWA Details

  • Manufacturer Part Number:

    PSA39-21SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.906 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

PSA39-21SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSA39-21SRWA is -40°C to 100°C.
  • Yes, PSA39-21SRWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to protect it from environmental factors like moisture and UV radiation.
  • The maximum forward current that PSA39-21SRWA can handle is 30mA. Exceeding this current may reduce the lifespan of the LED or cause it to fail.
  • Yes, PSA39-21SRWA can be used in high-vibration applications, but it's recommended to use a secure mounting method to prevent the LED from becoming dislodged or damaged.
  • Yes, PSA39-21SRWA is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
