PSA39-21SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 1 Character Common Anode 1.85V 10mA 0.820" H x 0.390" W x 0.380" D (20.83mm x 9.91mm x 9.65mm) 16-DIP (0.295", 7.50mm)

Download PSA39-21SURKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PSA39-21SURKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

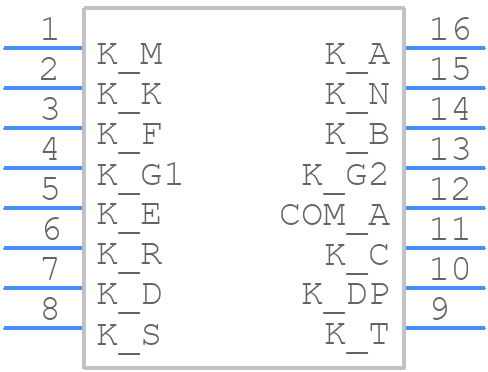

PSA39-21SURKWA - Kingbright - PCB symbol

PCB Footprints

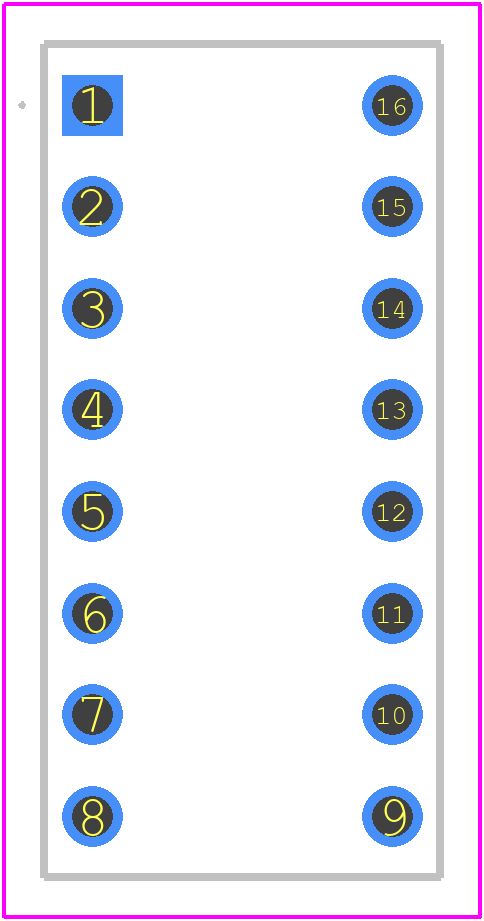

PSA39-21SURKWA - Kingbright PCB footprint - Other - Other - 16-DIP_2025-1.1

3D Models

PSA39-21SURKWA - Kingbright - 3D model - Other - 16-DIP_2025-1.1

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSA39-21SURKWA
Part Number PSA39-21SURKWA
Manufacturer Kingbright
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - 16-DIP_2025-1.1
Released Date Sep 29, 2025
Last Modified Date Sep 29, 2025 9:22 AM UTC
Pinout / Pin List Click Here (Member Only)

PSA39-21SURKWA Details

Manufacturer Part Number:
PSA39-21SURKWA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.87
Optoelectronic Device Type:
14 SEG ALPHANUMERIC LED DISPLAY

Trust Checks

Community Provided

System Verified

Community Approved

PSA39-21SURKWA Overview

Use the download button to access the PSA39-21SURKWA schematic symbol, PCB footprint, and 3D model.
