PSC08-11EWA - Kingbright

Description: 20.32 mm (0.8 inch) 16 Segment Single Digit Alphanumeric Display Operating Temperature -40 to +85 °C DC Forward Current 30 mA

Download PSC08-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

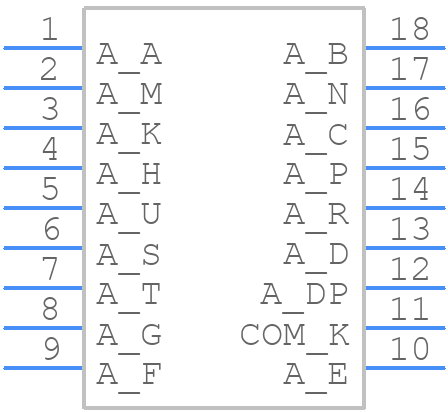

PSC08-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

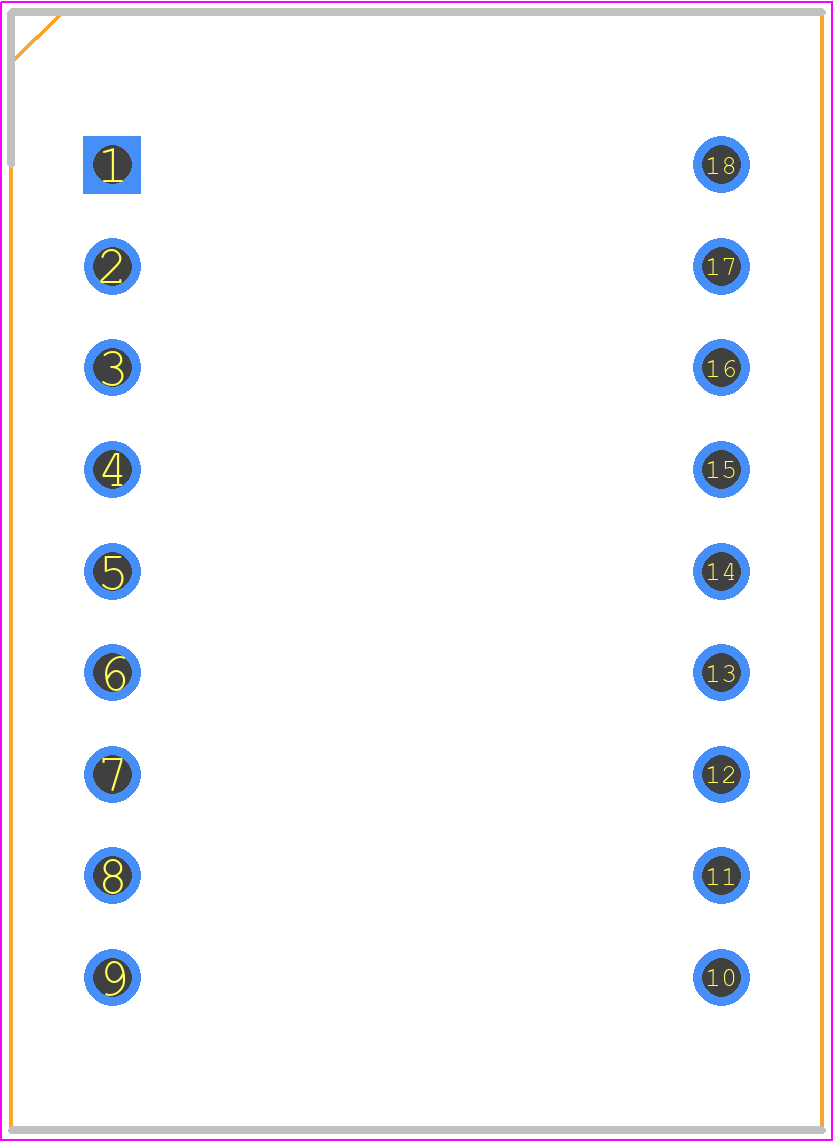

PSC08-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-18_2025
click to zoom

PSC08-11EWA Details

  • Manufacturer Part Number:

    PSC08-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.85

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

PSC08-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSC08-11EWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • While PSC08-11EWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for PSC08-11EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, PSC08-11EWA is compatible with lead-free soldering, but the soldering temperature and time should be adjusted according to the specific lead-free soldering process.
  • The typical junction temperature of PSC08-11EWA is 125°C, but it can operate up to 150°C with derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSC08-11EWA Overview

Use the download button to access the PSC08-11EWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PSC08, or try a keyword search, such as LED Displays
