PSC08-11GWA - Kingbright

Description: 20.32 mm (0.8 inch) 16 Segment Single Digit Alphanumeric Display

Download PSC08-11GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

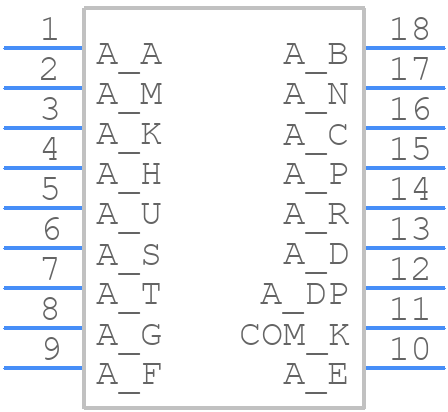

PSC08-11GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

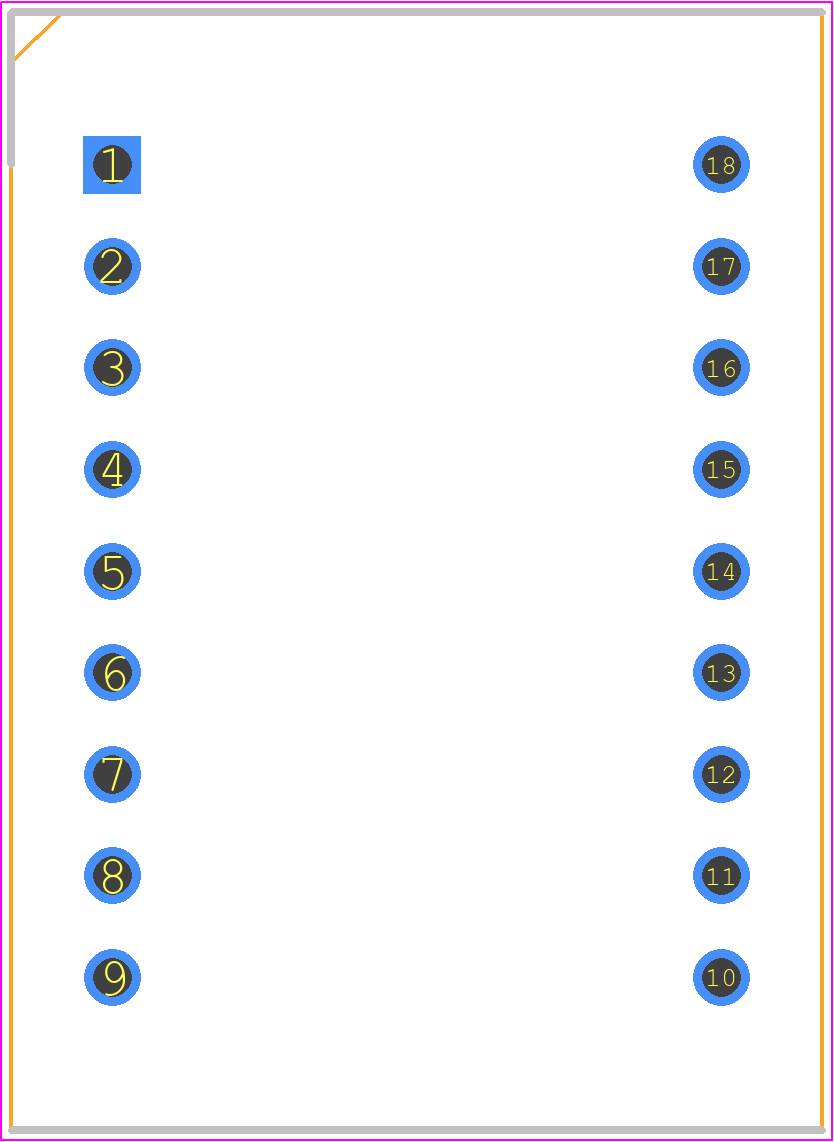

PSC08-11GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - PSC08-11YWA
click to zoom
3D Models
PSC08-11GWA - Kingbright - 3D model - Dual-In-Line Sockets - PSC08-11YWA
click to zoom

PSC08-11GWA Details

  • Manufacturer Part Number:

    PSC08-11GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.85

  • Color:

    GREEN

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

PSC08-11GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSC08-11GWA is -30°C to 80°C, with a relative humidity of 60% or less.
  • Yes, PSC08-11GWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum soldering temperature for PSC08-11GWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, PSC08-11GWA is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical luminous intensity of PSC08-11GWA is 11000 mcd, with a viewing angle of 30°.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSC08-11GWA Overview

Use the download button to access the PSC08-11GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSC08, or try a keyword search, such as LED Displays
