PSC08-11SRWA - Kingbright

Description: Display: LED; alphanumeric; 20mm; No.char:1; red; 8÷18mcd; cathode

Download PSC08-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

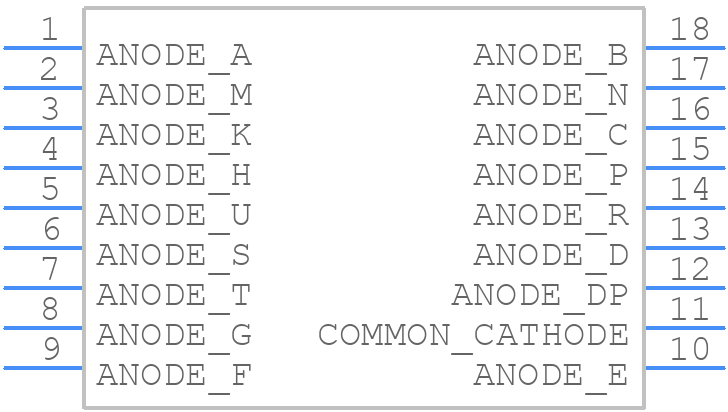

PSC08-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

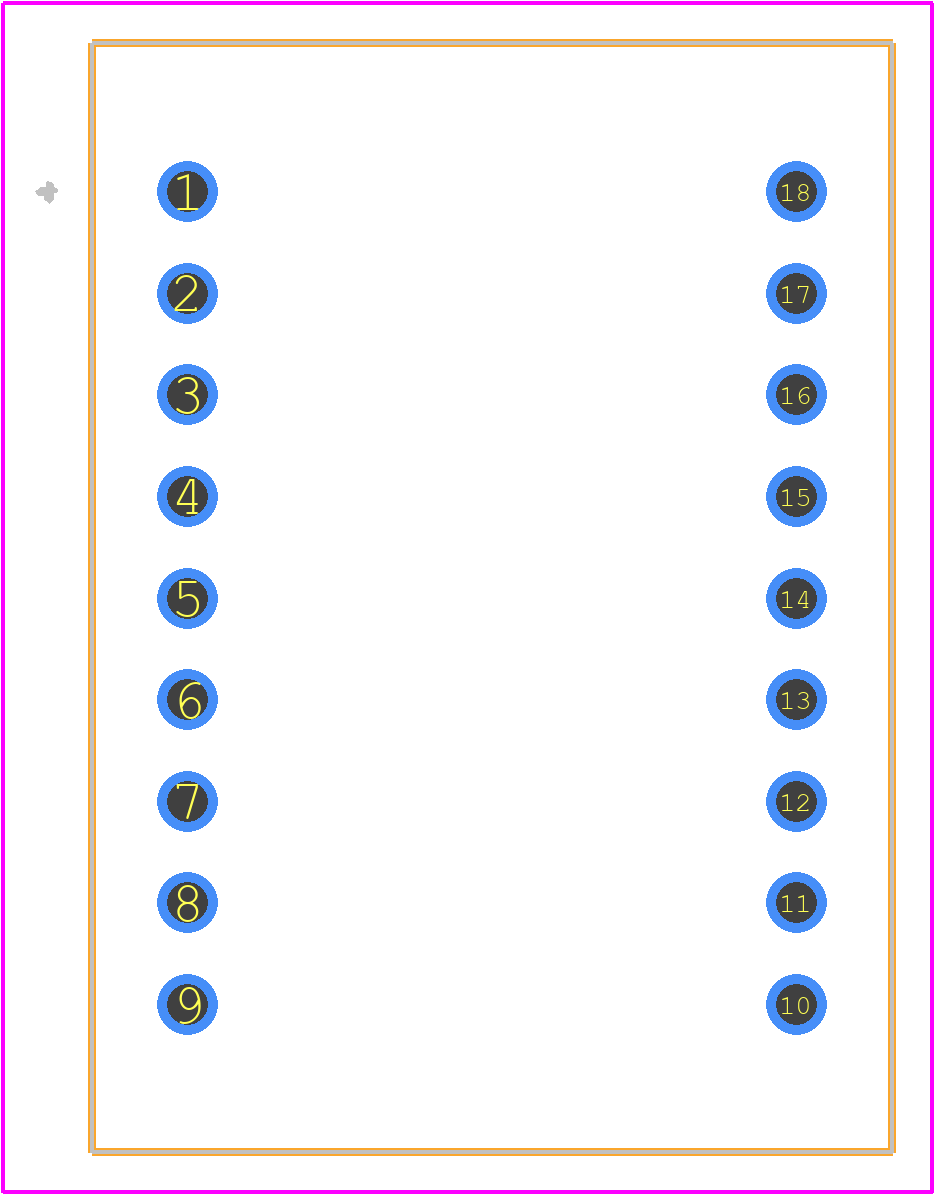

PSC08-11SRWA - Kingbright PCB footprint - Other - Other - PSC08-11SRWA-4
click to zoom
3D Models
PSC08-11SRWA - Kingbright - 3D model - Other - PSC08-11SRWA-4
click to zoom

PSC08-11SRWA Details

  • Manufacturer Part Number:

    PSC08-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0

  • Color:

    SUPER BRIGHT RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    16 SEG ALPHANUMERIC LED DISPLAY

PSC08-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PSC08-11SRWA is -40°C to 100°C.
  • Yes, PSC08-11SRWA is suitable for outdoor use due to its high luminous intensity and IP67 rating, which provides protection against dust and water ingress.
  • The typical forward voltage of PSC08-11SRWA is 2.0-2.5V.
  • Yes, PSC08-11SRWA can be used in high-temperature applications up to 85°C, but the luminous intensity may decrease at higher temperatures.
  • Yes, PSC08-11SRWA is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
