PSC39-21EWA - Kingbright

Description: Display Type 14 Segment Number of Digits 1 Digit Character Size 6.33 mm x 9.906 mm Module Size - W x H x T 9.906 mm x 20.83 mm x 9.65 mm Illumination Color Red Wavelength 625 nm Configuration Common Cathode Luminous Intensity 3700 ucd If - Forward Current 20 mA Vf - Forward Voltage 2 V Maximum Operating Temperature + 85 C Minimum Operating Temperature - 40 C Mounting Style Through Hole Packaging Bulk Power Consumption 75 mW Product Type LED Displays

Download PSC39-21EWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PSC39-21EWA model

Email notifications will be applied after download.

Send part feedback

Symbol

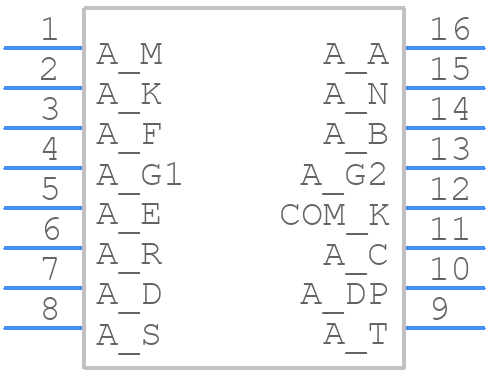

PSC39-21EWA - Kingbright - PCB symbol

PCB Footprints

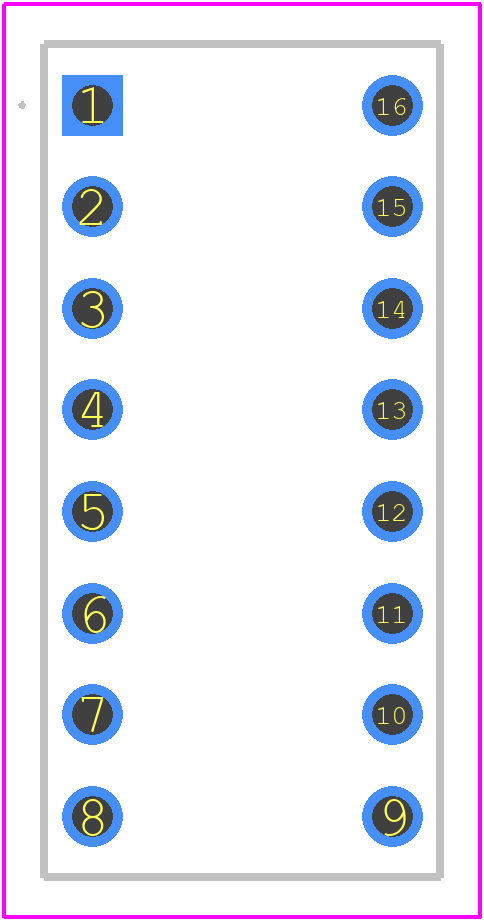

PSC39-21EWA - Kingbright PCB footprint - Other - Other - DIP-10_2025-1

3D Models

PSC39-21EWA - Kingbright - 3D model - Other - DIP-10_2025-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSC39-21EWA
Part Number PSC39-21EWA
Manufacturer Kingbright
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - DIP-10_2025-1
Released Date Jul 29, 2018
Last Modified Date Jun 4, 2025 5:53 AM UTC
Pinout / Pin List Click Here (Member Only)

PSC39-21EWA Details

Manufacturer Part Number:
PSC39-21EWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-10
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.87
Color:
HIGH EFFICIENCY RED
Color@Wavelength:
Orange
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
9.906 mm
Forward Current-Max:
0.03 A
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
14 SEG ALPHANUMERIC LED DISPLAY

PSC39-21EWA Frequently Asked Questions (FAQs)

The recommended storage temperature for PSC39-21EWA is -20°C to 30°C, with a relative humidity of 60% or less.
While PSC39-21EWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
The maximum soldering temperature for PSC39-21EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, PSC39-21EWA is compatible with lead-free soldering, but the soldering profile should be adjusted according to the specific lead-free solder alloy used.
The typical lifespan of PSC39-21EWA is 50,000 hours or more, depending on operating conditions and usage.
