The thermal resistance of the PTF5640K000BYEK is typically around 250°C/W, but it's recommended to consult the manufacturer's documentation or contact Vishay Intertechnologies for the most up-to-date and accurate information.
While the PTF5640K000BYEK is a high-precision resistor, it's not specifically designed for high-frequency applications. For frequencies above 100 kHz, it's recommended to consider other resistor series from Vishay Intertechnologies that are optimized for high-frequency performance.
The PTF5640K000BYEK has a maximum operating temperature of 150°C. While it can tolerate high temperatures, it's essential to ensure that the resistor is properly derated to avoid overheating and premature failure.
The recommended soldering temperature for the PTF5640K000BYEK is between 260°C to 280°C, with a maximum soldering time of 3 seconds. It's crucial to follow the manufacturer's recommended soldering profile to avoid damaging the resistor.
Yes, the PTF5640K000BYEK resistor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications, including those that require environmental compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTF5640K000BYEK Overview

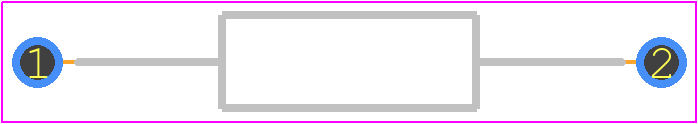

Use the download button to access the PTF5640K000BYEK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTF56,
or try a keyword search, such as Metal Film Resistors
