The maximum input voltage that can be applied to the PTH03060WAH is 60V, as specified in the datasheet. However, it's recommended to derate the input voltage to ensure reliable operation and to prevent damage to the device.
To ensure the PTH03060WAH operates within its thermal limits, it's essential to provide adequate heat sinking and airflow. The device's thermal resistance (θJA) is 24°C/W, so a heat sink with a thermal resistance of 10°C/W or lower is recommended. Additionally, ensure good airflow around the device to prevent overheating.
The minimum input capacitance required for the PTH03060WAH is 10uF, as specified in the datasheet. However, it's recommended to use a higher capacitance value (e.g., 22uF) to ensure stable operation and to filter out input voltage ripple.
Yes, the PTH03060WAH is suitable for high-reliability applications. It's built with high-reliability components and has undergone rigorous testing to ensure its performance and durability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the PTH03060WAH, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTH03060WAH Overview

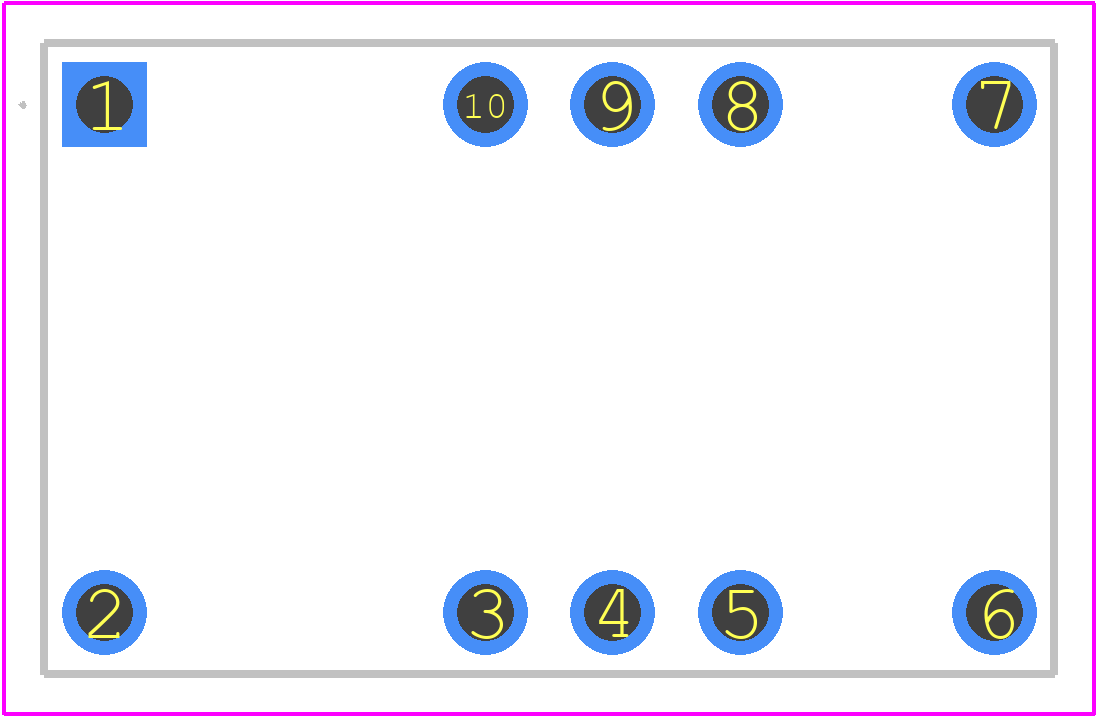

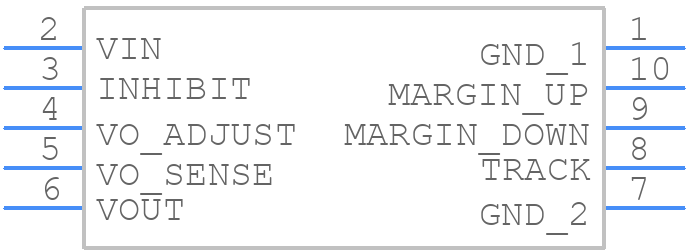

Use the download button to access the PTH03060WAH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTH03,
or try a keyword search, such as Power Supply Modules
