PTH12030WAH - Texas Instruments

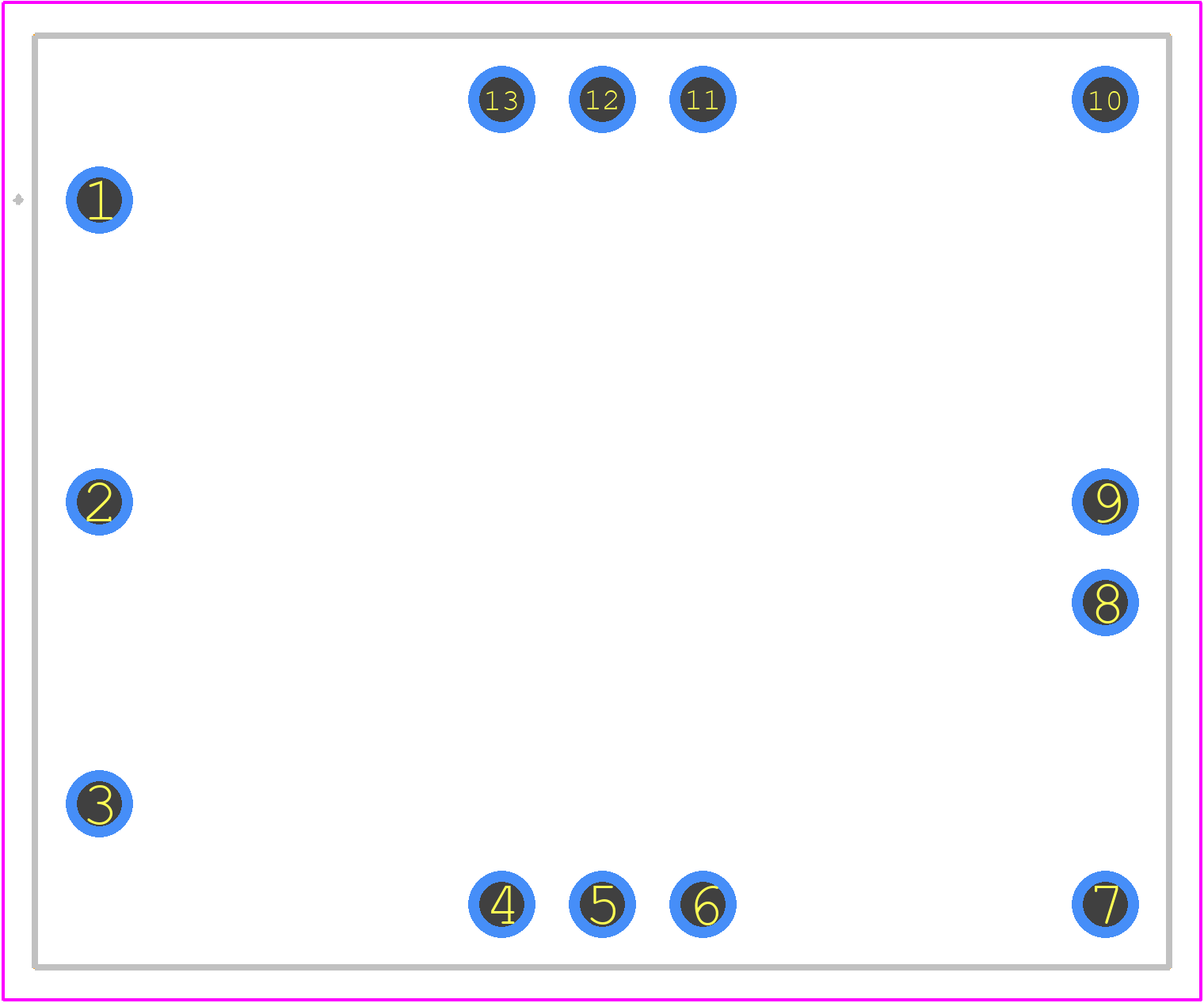

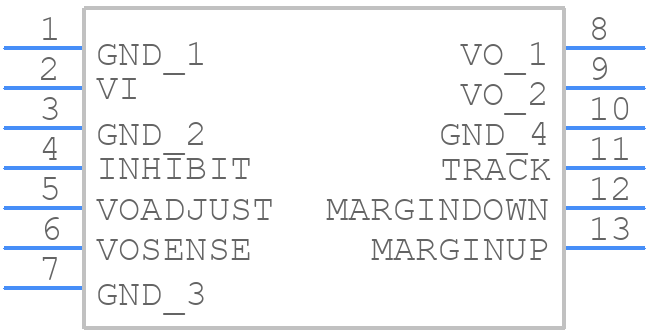

PTH12030WAH Details

• Manufacturer Part Number:

  PTH12030WAH

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MODULE

• Pin Count:

  13

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8504.40.85.00

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  REMOTE SHUTDOWN

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CSA

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  94.5%

• Input Voltage-Max:

  13.8 V

• Input Voltage-Min:

  10.2 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XQMA-P13

• JESD-609 Code:

  e3

• Length:

  34.8 mm

• Line Regulation-Max:

  0.15%

• Load Regulation-Max:

  0.15%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  13

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  26 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  1.2 V

• Output Voltage-Nom:

  1.2 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  QMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER CURRENT;THERMAL

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.00884 Vrms

• Seated Height-Max:

  9 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  675 kHz

• Technology:

  HYBRID

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  PIN/PEG

• Terminal Position:

  QUAD

• Total Power Output-Max:

  143 W

• Trim/Adjustable Output:

  YES

• Width:

  28.45 mm
