PTH12040WAD - Texas Instruments

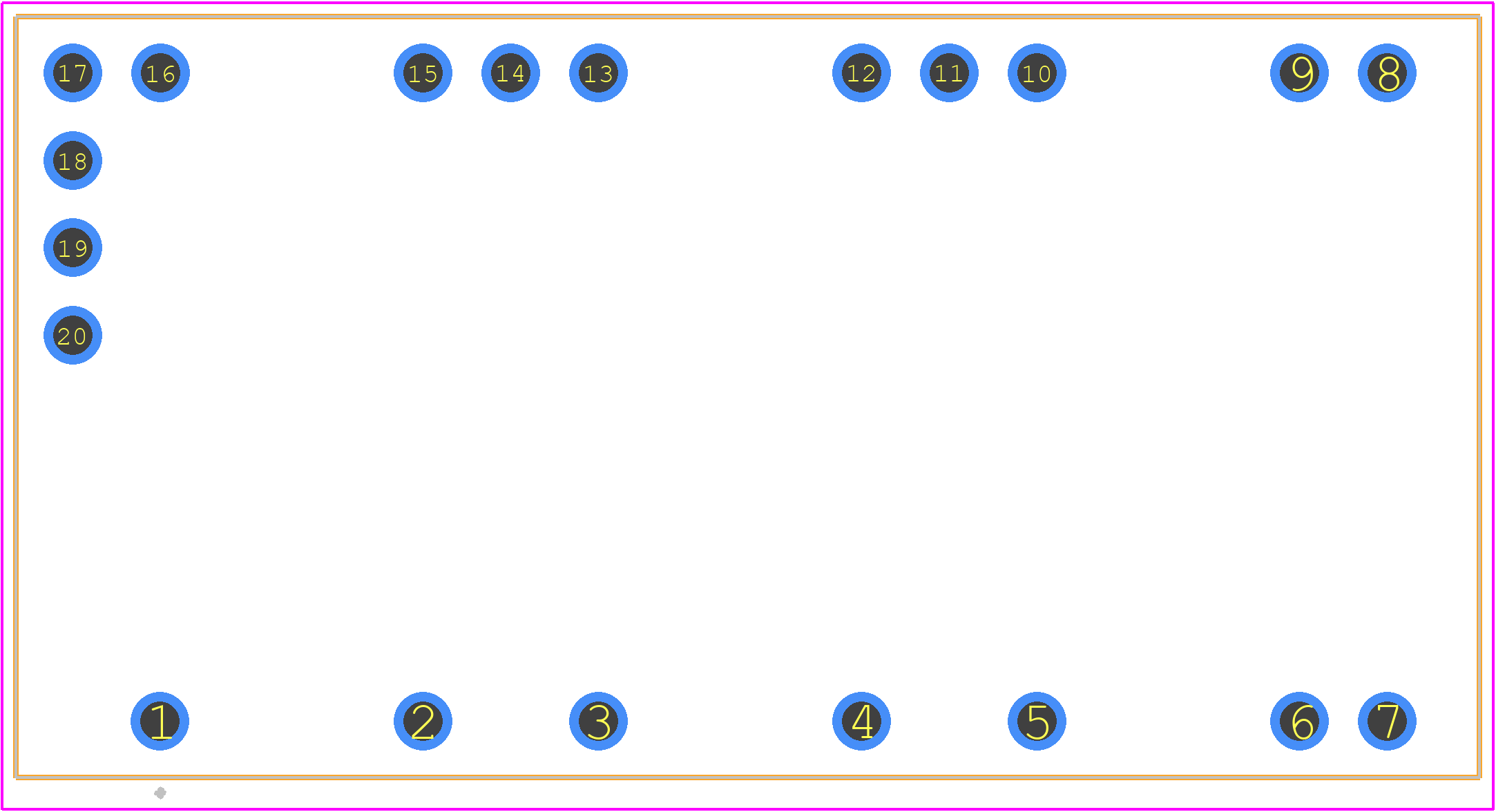

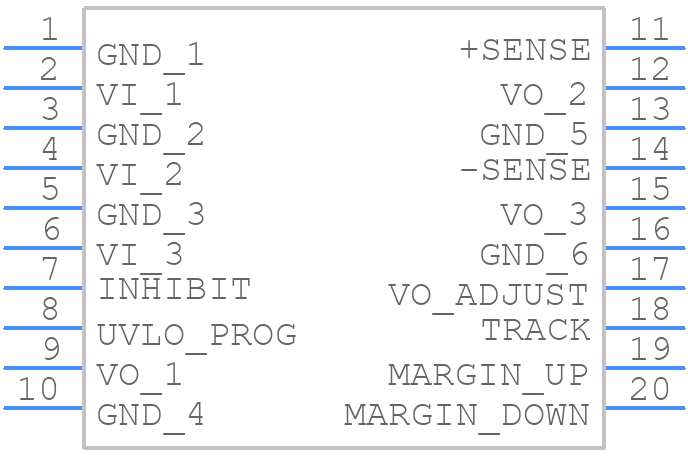

PTH12040WAD Details

• Manufacturer Part Number:

  PTH12040WAD

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  20

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8504.40.85.00

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  REMOTE SHUTDOWN

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, VDE

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  96%

• Input Voltage-Max:

  14 V

• Input Voltage-Min:

  8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XXMA-P20

• JESD-609 Code:

  e3

• Length:

  51.94 mm

• Line Regulation-Max:

  0.15%

• Load Regulation-Max:

  0.15%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  50 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.8 V

• Output Voltage-Nom:

  0.8 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.0053 Vrms

• Seated Height-Max:

  9.07 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1200 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Position:

  UNSPECIFIED

• Total Power Output-Max:

  275 W

• Trim/Adjustable Output:

  YES

• Width:

  26.54 mm
