PTLC6C5724QDAPRQ1 - Texas Instruments

Description: Automotive 24 Channel Full Diagnostics Constant Current RGB LED Driver

Download PTLC6C5724QDAPRQ1 Model

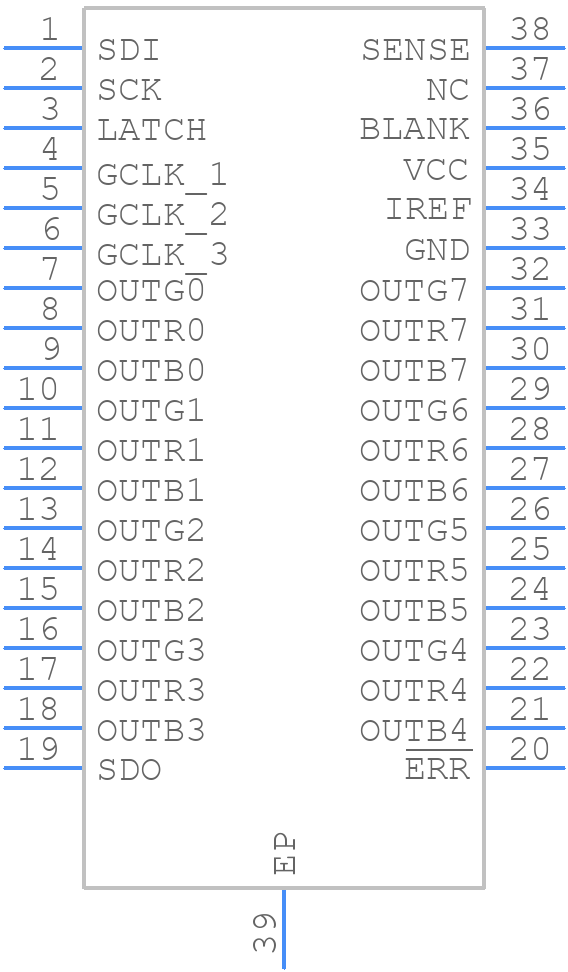

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PTLC6C5724QDAPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DAP0038E
click to zoom
3D Models
PTLC6C5724QDAPRQ1 - Texas Instruments  - 3D model - Small Outline Packages - DAP0038E
click to zoom

PTLC6C5724QDAPRQ1 Details

  • Manufacturer Part Number:

    PTLC6C5724QDAPRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • Screening Level:

    AEC-Q100

PTLC6C5724QDAPRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified temperature range.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the specified range of 3.3V ± 10%.
  • The PTLC6C5724QDAPRQ1 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap, mat, or workstation, and ensure that the device is handled in a static-safe environment.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying any input signals. This ensures that the internal circuitry is properly initialized and configured before receiving input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTLC6C5724QDAPRQ1 Overview

Use the download button to access the PTLC6C5724QDAPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTLC6, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
