PTN3360DBS,518 - NXP

Description: NXP - PTN3360DBS,518 - LEVEL SHIFTER, HVQFN-48

Download PTN3360DBS,518 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

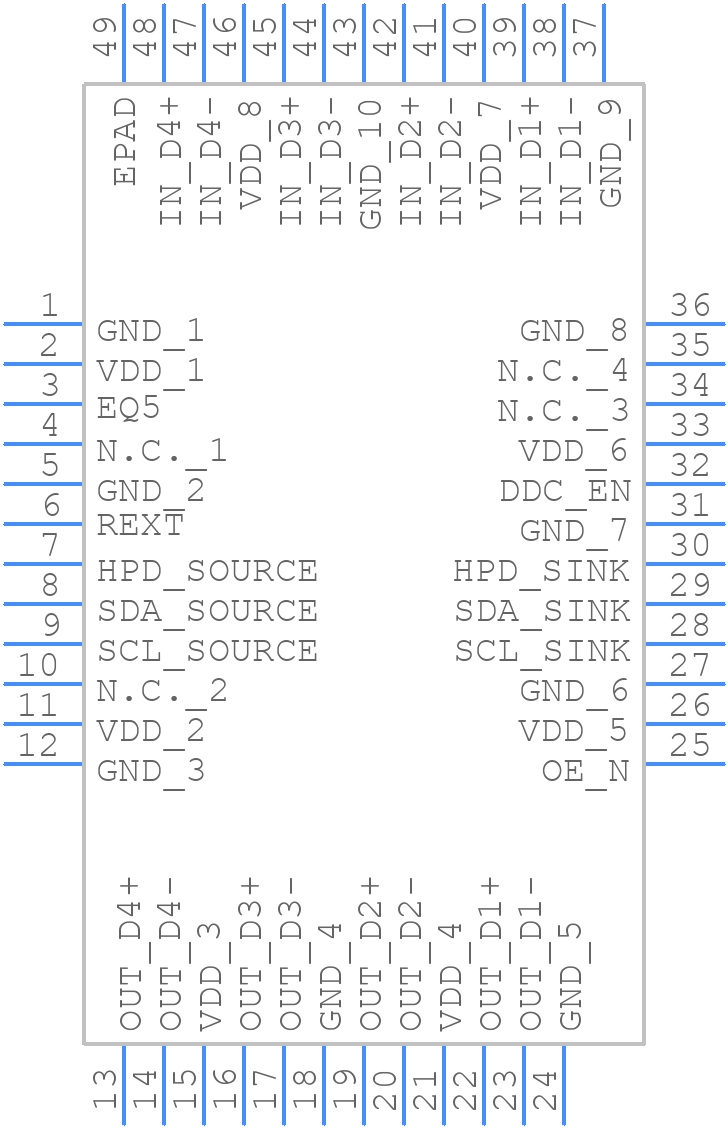

Symbol
PTN3360DBS,518 - NXP - PCB symbol
click to zoom
PCB Footprints
PTN3360DBS,518 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT619-22-1
click to zoom
3D Models
PTN3360DBS,518 - NXP - 3D model - Quad Flat No-Lead - SOT619-22-1
click to zoom

PTN3360DBS,518 Details

  • Manufacturer Part Number:

    PTN3360DBS,518

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT619-1, HVQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT619-1

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

PTN3360DBS,518 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the HDMI traces as short as possible and away from noise sources. Use a common mode filter and a shielded cable to reduce EMI.
  • Follow the HDMI 2.0 specification guidelines for signal integrity, jitter, and eye diagram requirements. Use the NXP-provided IBIS models and simulation tools to verify compliance. Ensure proper PCB layout, termination, and signal conditioning.
  • The maximum cable length supported is 30 meters at 18 Gbps. However, this can vary depending on the cable quality, signal attenuation, and system requirements. Use active cables or repeaters for longer distances.
  • Use an oscilloscope to analyze the signal quality and eye diagram. Check for proper termination, signal attenuation, and PCB layout. Verify that the device is properly configured and that the system meets the HDMI 2.0 specifications.
  • Yes, PTN3360DBS,518 is backward compatible with HDMI 1.4 and earlier versions. However, the device's performance may be limited to the capabilities of the older HDMI versions.
