Part Image

PTN3366BSMP - NXP

Description: NXP - PTN3366BSMP - Level Shifter, 8 Inputs, 200ns, 3V to 3.6V, HVQFN-32

Download PTN3366BSMP Model

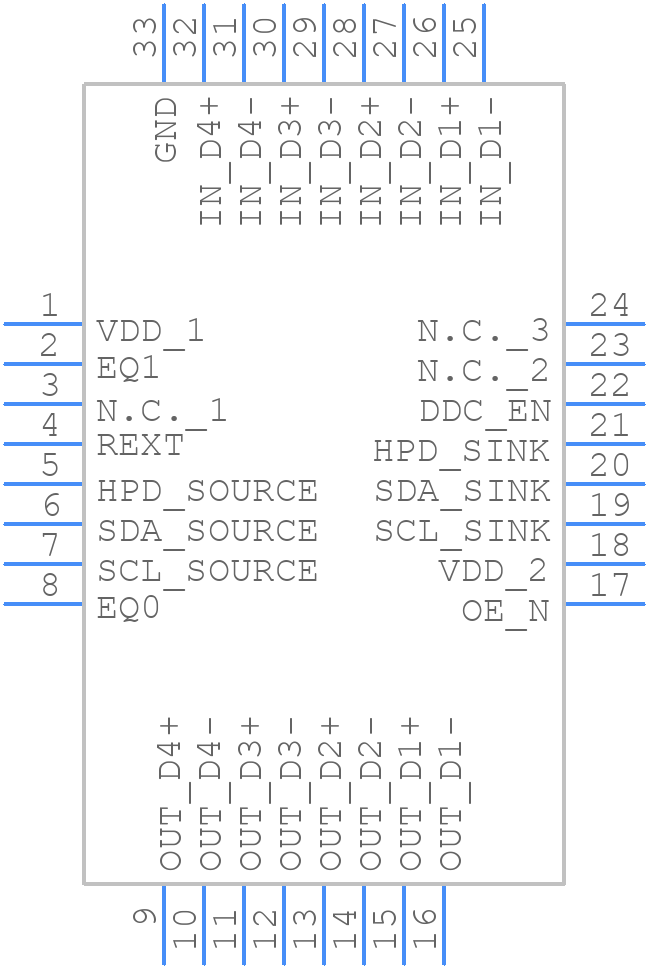

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PTN3366BSMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - hvqfn32
click to zoom
3D Models
PTN3366BSMP - NXP  - 3D model - Quad Flat No-Lead - hvqfn32
click to zoom

PTN3366BSMP Details

  • Manufacturer Part Number:

    PTN3366BSMP

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT617-3, HVQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT617-3

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    SEATED HEIGHT CONSIDERED NOMINAL

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

PTN3366BSMP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the device and use short, wide traces for the high-frequency signals.
  • Ensure that the input and output capacitors are of high quality and have low ESR. Also, make sure the PCB layout is well-designed, and the device is properly decoupled from the power supply.
  • The maximum ambient temperature range for the PTN3366BSMP is -40°C to 85°C. However, the device can operate up to 125°C with derating.
  • Yes, the PTN3366BSMP is designed to meet the EMC requirements of various industries. However, it's essential to follow proper PCB design and layout guidelines to minimize electromagnetic interference (EMI).
  • Use an oscilloscope to check the input and output waveforms, and verify that the device is properly powered and decoupled. Also, check the PCB layout for any signs of damage or overheating.
