PTN36241GHXZ - NXP

Description: NXP - PTN36241GHXZ - SUPERSPEED USB REDRIVER, USB 3.0, X2QFN

Download PTN36241GHXZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

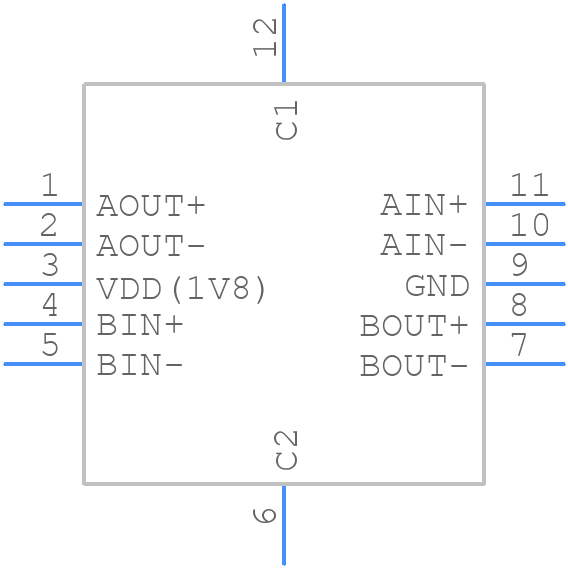

PTN36241GHXZ - NXP - PCB symbol
click to zoom
PCB Footprints
PTN36241GHXZ - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NCV210RSQT2G-
click to zoom
3D Models
PTN36241GHXZ - NXP - 3D model - Quad Flat No-Lead - NCV210RSQT2G-
click to zoom

PTN36241GHXZ Details

  • Manufacturer Part Number:

    PTN36241GHXZ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    X2QFN-12

  • Manufacturer Package Code:

    SOT1408-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-04-18

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.000045 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    1.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    0.5 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    0.5 ns

  • Width:

    2.1 mm

PTN36241GHXZ Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the application note AN11535, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The input capacitors should be selected based on the input voltage, current, and frequency. NXP recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The capacitance value should be chosen to ensure a minimum of 10uF per ampere of output current.
  • The maximum ambient temperature for the PTN36241GHXZ is 85°C, as specified in the datasheet. However, it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • Yes, the PTN36241GHXZ is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments. However, additional testing and validation may be required for specific applications.
  • NXP provides a troubleshooting guide in the application note AN11535, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and thermal imaging cameras to diagnose issues and optimize the design.
