PTN36502HQX - NXP

Description: USB Interface IC 5Gb USB/DP Combo Redriver

Download PTN36502HQX Model
Schematic
symbols

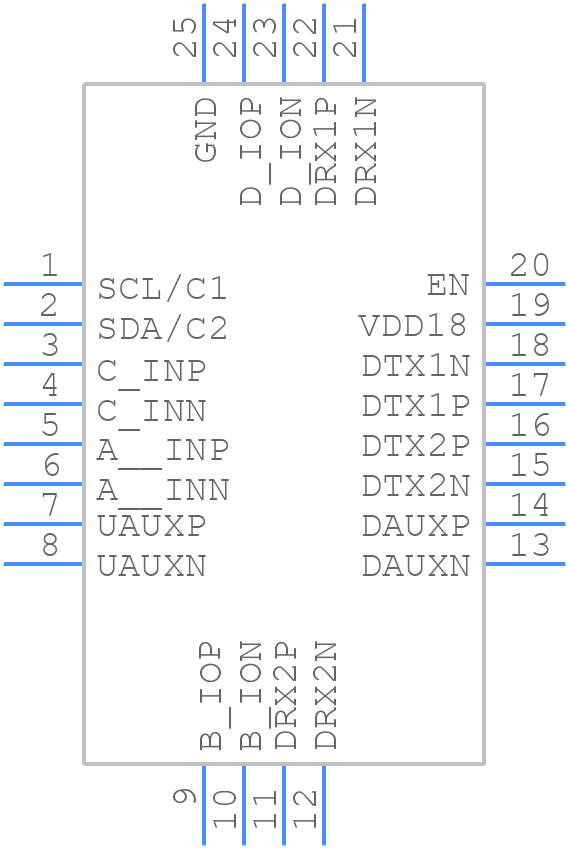

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PTN36502HQX - NXP PCB footprint - Other - Other - PTN36502HQX-2
click to zoom
3D Models
PTN36502HQX - NXP  - 3D model - Other - PTN36502HQX-2
click to zoom

PTN36502HQX Details

  • Manufacturer Part Number:

    PTN36502HQX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HX2QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PQCC-N24

  • Length:

    3.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.1X.12,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    0.6 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    0.6 ns

  • Width:

    2.4 mm
