PTN38007EWY - NXP

Description: ReDriver 4 Channel 20Gbps 36-HWFLGA (2.1x6) , Surface Mount , 250 mA , 1.7V ~ 1.9V , -20 °C ~ +85 °C (TA)

Download PTN38007EWY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

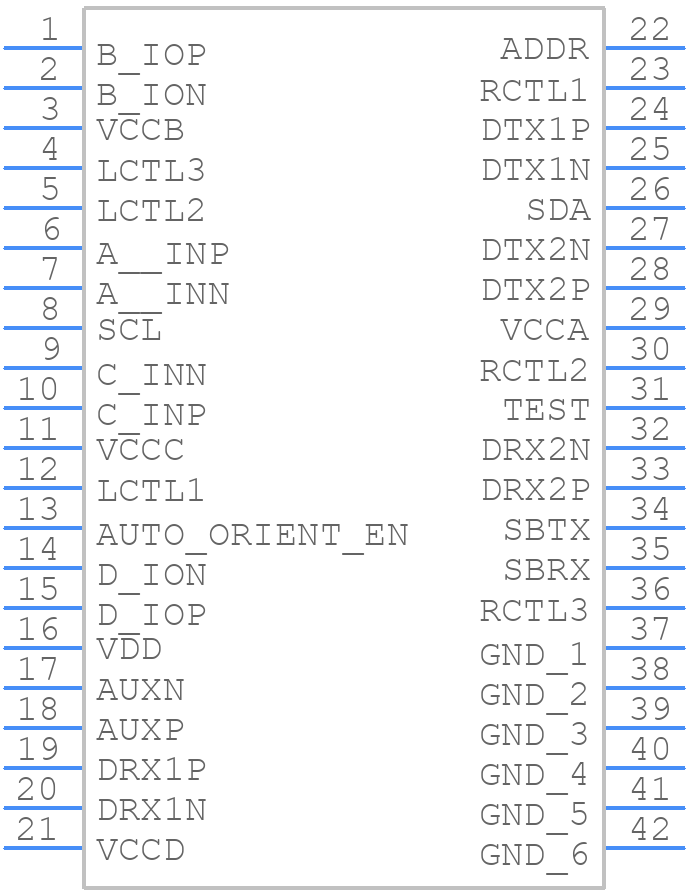

Symbol
PTN38007EWY - NXP - PCB symbol
click to zoom
PCB Footprints
PTN38007EWY - NXP PCB footprint - Other - Other - SOT1948-1_2026
click to zoom
3D Models
PTN38007EWY - NXP - 3D model - Other - SOT1948-1_2026
click to zoom

PTN38007EWY Details

  • Manufacturer Part Number:

    PTN38007EWY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HWFLGA-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PBGA-N36

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWFLGA

  • Package Equivalence Code:

    LCC36,.08X.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    0.09 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.677 mm

  • Supply Current-Max:

    270 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Transmit Delay-Max:

    0.09 ns

  • Width:

    2.1 mm

PTN38007EWY Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. NXP recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN11542 for more details.
  • The maximum allowed output voltage deviation is ±10% of the nominal output voltage. Exceeding this deviation may affect the reliability and performance of the device.
  • NXP recommends using an external OVP circuit, such as a voltage supervisor or a dedicated OVP IC, to detect and respond to overvoltage conditions. The application note AN11542 provides a reference design for OVP implementation.
  • The recommended operating temperature range for the PTN38007EWY is -40°C to +125°C. However, the device can operate up to +150°C with derating. Refer to the datasheet for more information on temperature derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTN38007EWY Overview

Use the download button to access the PTN38007EWY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTN38, or try a keyword search, such as Line Driver or Receivers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
