PTN5110NDHQZ - NXP

Description: Low Speed/Full Speed/High Speed USB Interface Device USB 3.0 3.3V T/R

Download PTN5110NDHQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

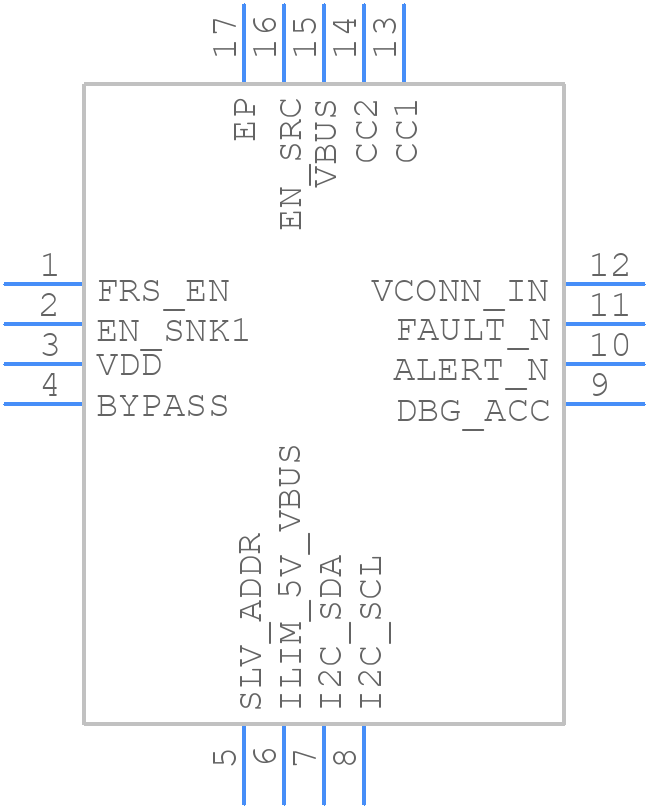

PTN5110NDHQZ - NXP - PCB symbol
click to zoom
PCB Footprints
PTN5110NDHQZ - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT1883_1
click to zoom
3D Models
PTN5110NDHQZ - NXP - 3D model - Quad Flat No-Lead - SOT1883_1
click to zoom

PTN5110NDHQZ Details

  • Manufacturer Part Number:

    PTN5110NDHQZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HX2QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.1SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2.6 mm

PTN5110NDHQZ Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the PTN5110 application note (AN11542). It's essential to follow the guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The PTN5110 is a USB-C controller that supports Power Delivery (PD) and can be configured using the I2C interface. NXP provides a detailed configuration guide in the PTN5110 datasheet and application note (AN11542). Additionally, NXP offers a software development kit (SDK) that includes example code and tools to simplify the configuration process.
  • The VCONN power pin on the PTN5110 is rated for a maximum current of 1.5 A. This is specified in the PTN5110 datasheet and is intended to power the USB-C connector's CC lines and other external components.
  • Yes, the PTN5110 can be used in a USB-C hub application. It supports multiple downstream facing ports (DFPs) and can be configured to manage the power delivery and data transmission between the upstream facing port (UFP) and the DFPs. NXP provides a reference design for a USB-C hub application in the PTN5110 application note (AN11542).
  • NXP provides a troubleshooting guide in the PTN5110 application note (AN11542) that covers common issues and their solutions. Additionally, NXP offers a range of development tools, including the PTN5110 evaluation board and software development kit (SDK), which can be used to debug and troubleshoot issues.
