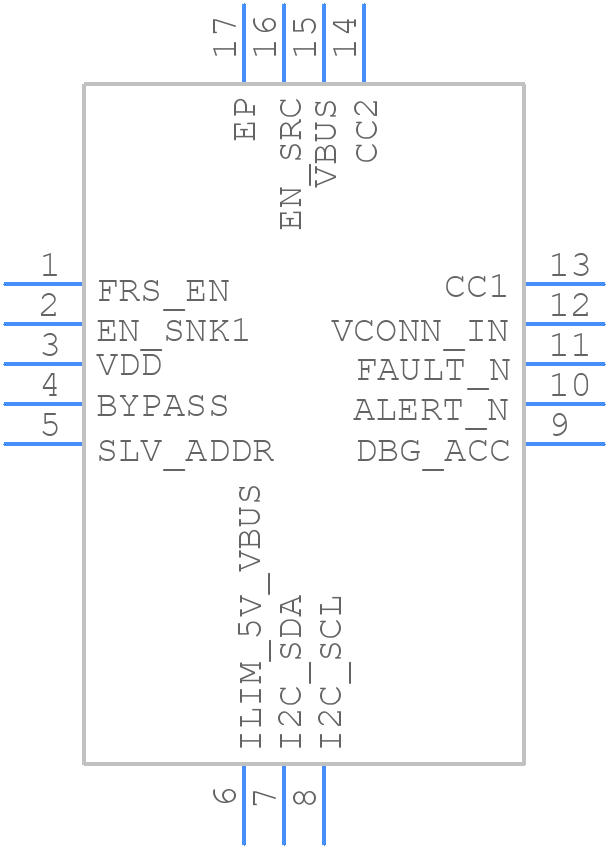

PTN5110THQZ - NXP

PTN5110THQZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance of PTN5110THQZ?
  A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure efficient heat dissipation.
• How do I ensure reliable operation of PTN5110THQZ in high-temperature environments?
  Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
• What is the maximum current rating for the PTN5110THQZ, and how do I calculate the power dissipation?
  The maximum current rating is 1.5A per channel. To calculate power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
• How do I implement overcurrent protection for PTN5110THQZ?
  Use an external current sense resistor and a comparator to monitor the current. When the current exceeds the threshold, use a logic signal to shut down the device or trigger an interrupt.
• What are the EMI and EMC considerations for PTN5110THQZ, and how do I minimize electromagnetic interference?
  Use a shielded cable, keep the layout compact, and use a common-mode choke to reduce EMI. Also, ensure proper grounding and decoupling to minimize electromagnetic radiation.
