PTN5150AHXMP - NXP

Description: USB Controller USB Interface 12-X2QFN (1.6x1.6), 2.7V ~ 5.5V , 100 uA , -40°C ~ 85°C

Download PTN5150AHXMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

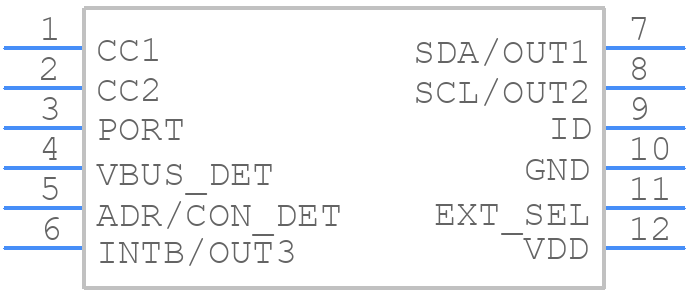

Symbol
PTN5150AHXMP - NXP - PCB symbol
click to zoom
PCB Footprints
PTN5150AHXMP - NXP PCB footprint - Other - Other - SOT1355-1_2025
click to zoom
3D Models
PTN5150AHXMP - NXP - 3D model - Other - SOT1355-1_2025
click to zoom

PTN5150AHXMP Details

  • Manufacturer Part Number:

    PTN5150AHXMP

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    X2QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    SOT1355-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.06SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

PTN5150AHXMP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use a common mode choke to reduce EMI.
  • Monitor the device's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal management techniques such as heat sinks or thermal pads to keep the junction temperature below 150°C.
  • Use a common mode choke and a differential mode filter to reduce EMI. Place the filter components close to the PTN5150AHXMP and use a shielded cable for the output to minimize radiation.
  • Check the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the input voltage is within the specified range and the output voltage is set correctly using the feedback resistors.
  • Yes, the PTN5150AHXMP is qualified to the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
