PTN78060HAH - Texas Instruments

PTN78060HAH Details

• Manufacturer Part Number:

  PTN78060HAH

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

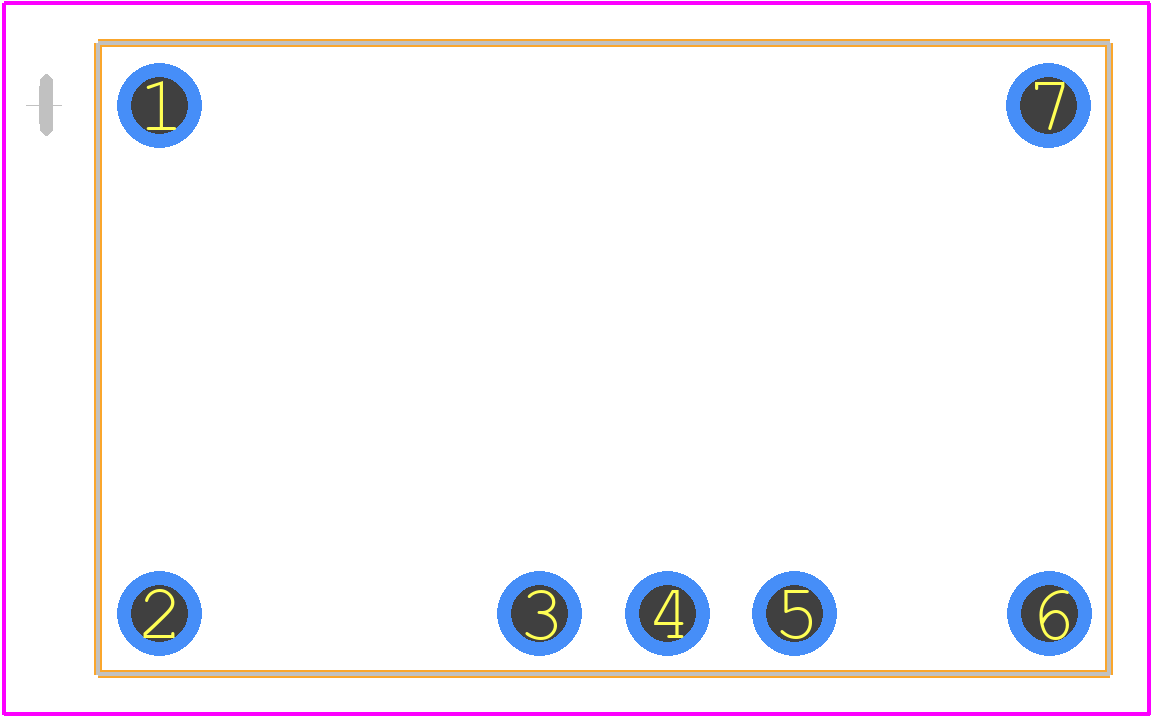

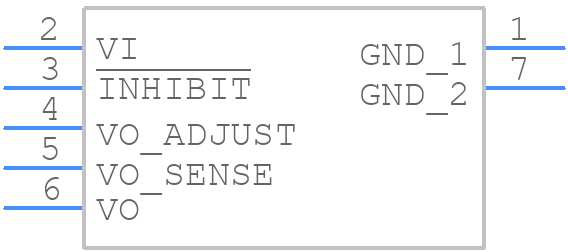

• Pin Count:

  7

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8504.40.95.80

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  VOUT=2.5 TO 12.6 VOLT AND VOUT=11.85 TO 22 VOLT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  15 V

• Input Voltage-Nom:

  20 V

• JESD-30 Code:

  R-XDMA-P7

• JESD-609 Code:

  e3

• Length:

  25.27 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Max:

  22 V

• Output Voltage-Min:

  11.85 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  9 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  660 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  3.175 mm

• Terminal Position:

  DUAL

• Width:

  15.75 mm
