PUMD10 - Nexperia

Description: PUMD10, Digital Transistor, NPN, PNP 100 MA 50 V 2.2 kΩ, Ratio Of 0.047, 6-Pin UMT

Download PUMD10 Model

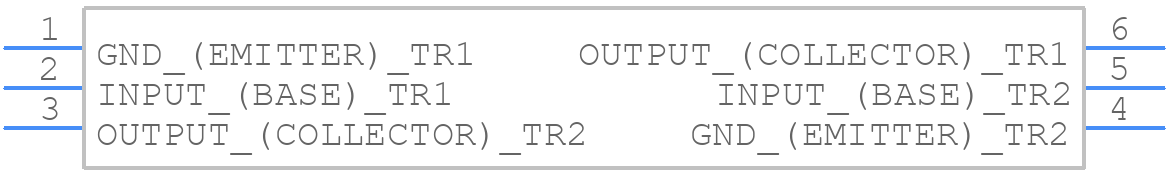

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PUMD10 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363 (SC-88)
click to zoom
3D Models
PUMD10 - Nexperia  - 3D model - SOT23 (6-Pin) - SOT363 (SC-88)
click to zoom

PUMD10 Details

  • Manufacturer Part Number:

    PUMD10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    1998-12-05

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 21

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    230 MHz

PUMD10 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for PUMD10 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
  • To ensure proper biasing, connect the anode (A) to a stable voltage source (e.g., VCC) and the cathode (K) to a low-impedance path to ground. Additionally, ensure the voltage across the device does not exceed the maximum rated voltage (VR) of 10 V.
  • To minimize EMI and noise, use a compact PCB layout with short leads and a solid ground plane. Place the PUMD10 close to the power source and use a decoupling capacitor (e.g., 100 nF) between the anode and cathode. Avoid routing high-frequency signals near the device.
  • Yes, PUMD10 can be used in switching power supply applications due to its fast switching times and low voltage drop. However, ensure the device is properly biased and the voltage across it does not exceed the maximum rated voltage (VR) of 10 V.
  • To prevent electrostatic discharge (ESD) damage, handle the PUMD10 by the body or use an ESD wrist strap or mat. Avoid touching the device's pins or leads, and use ESD-safe tools and equipment.
