PUMH13,115 - Nexperia

Description: Transistor 2xNPN 50V 4.7K 47K SOT363 NXP, PUMH13,115 NPN Digital Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 0.1, 6-Pin UMT

Download PUMH13,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

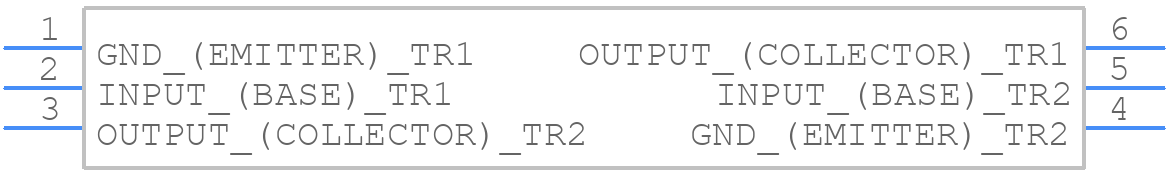

PUMH13,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PUMH13,115 - Nexperia PCB footprint - Other - Other - SOT363_2022
click to zoom
3D Models
PUMH13,115 - Nexperia - 3D model - Other - SOT363_2022
click to zoom

PUMH13,115 Details

  • Manufacturer Part Number:

    PUMH13,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    SOT-363, SC-88, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 10

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    2.5 pF

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    230 MHz

  • VCEsat-Max:

    0.1 V

PUMH13,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the PUMH13,115 near a thermal pad or a heat sink, ensuring good thermal conductivity. The PCB should also have sufficient copper thickness and a solid ground plane to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
  • The recommended soldering conditions for the PUMH13,115 involve using a soldering iron with a temperature of 250°C to 270°C, and a soldering time of 3 to 5 seconds. It's also essential to use a solder with a melting point above 217°C to ensure reliable joints.
  • To protect the PUMH13,115 from electrostatic discharge (ESD), it's essential to handle the device in an ESD-protected environment, use ESD-protected packaging, and follow proper grounding procedures during assembly and testing. Additionally, consider using ESD protection devices, such as TVS diodes, in the circuit design.
  • The PUMH13,115's reverse voltage rating of 1.5 kV implies that the device can withstand voltage transients and spikes in the circuit. However, it's essential to ensure that the overall circuit design can handle these voltage transients and spikes, and that the device is not exposed to excessive voltage stress, which can lead to premature failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PUMH13,115 Overview

Use the download button to access the PUMH13,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUMH1, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
