PUMH17 - Nexperia

Description: Transistor 2xNPN 50V 0.1A 47K 22K SOT363 NXP, PUMH17 NPN Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 2.13, 6-Pin UMT

Download PUMH17 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

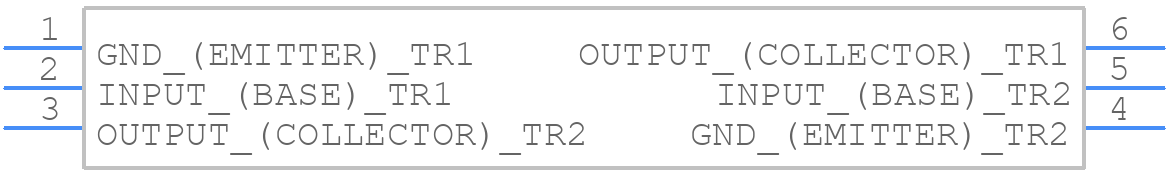

PUMH17 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PUMH17 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363
click to zoom
3D Models
PUMH17 - Nexperia - 3D model - SOT23 (6-Pin) - SOT363
click to zoom

PUMH17 Details

  • Manufacturer Part Number:

    PUMH17

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PUMH17 Overview

Use the download button to access the PUMH17 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUMH1, or try a keyword search, such as Small Signal Bipolar Transistors
