The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink if necessary, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The recommended soldering conditions for the PXT8050-D-TP are a peak temperature of 260°C, a dwell time above 217°C of 30 seconds, and a total process time of 60-90 seconds. It's also essential to follow the soldering guidelines provided in the datasheet and industry standards such as J-STD-020.
The PXT8050-D-TP is designed to withstand moderate vibration levels, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation in high-vibration environments. Additional mechanical support or potting may be necessary in extreme cases.
To troubleshoot common issues such as output voltage instability or overheating, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use oscilloscopes and thermal cameras to aid in the debugging process, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PXT8050-D-TP Overview

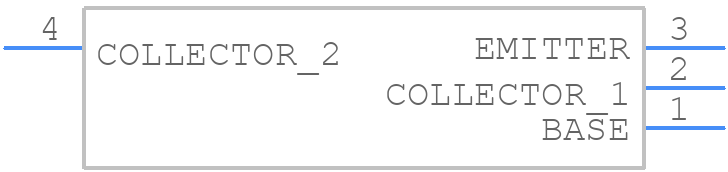

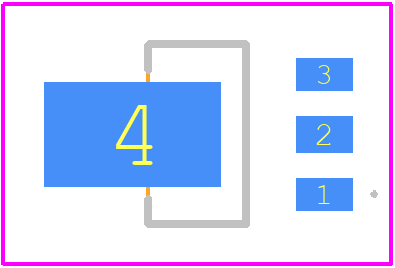

Use the download button to access the PXT8050-D-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXT80,
or try a keyword search, such as Small Signal Bipolar Transistors
