QM55001SR - Qorvo

Description: Mid-Band / Low-Band NB-IoT Transmit Module Supply Voltage, VCC Standby, Idle, Operating Mode 6V Operating Temperature -40 to +105 °C

Download QM55001SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

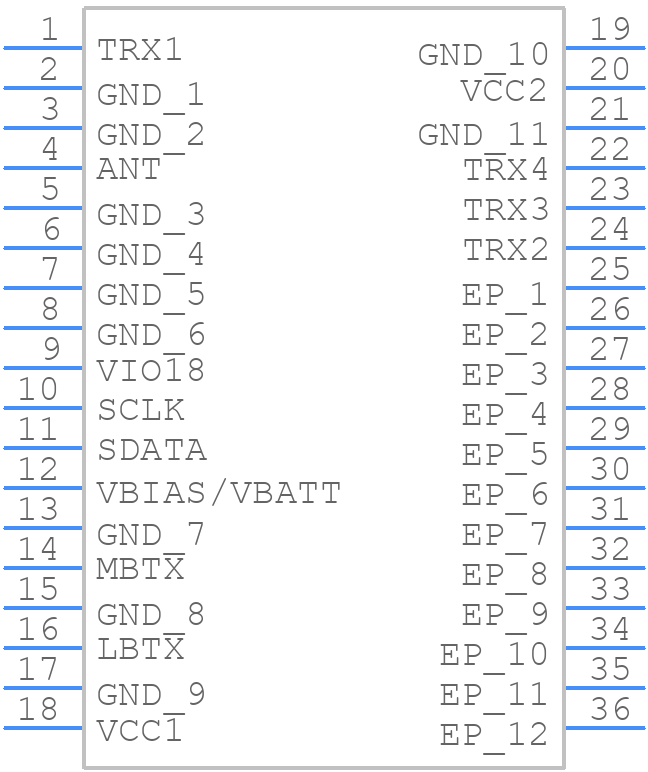

QM55001SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QM55001SR - Qorvo PCB footprint - Other - Other - Module, 24-Pin 5.00 x 4.00 x 0.64 mm
click to zoom
3D Models
QM55001SR - Qorvo - 3D model - Other - Module, 24-Pin 5.00 x 4.00 x 0.64 mm
click to zoom

QM55001SR Details

  • Manufacturer Part Number:

    QM55001SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-04-28

  • Manufacturer:

    Qorvo

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Terminal Finish:

    GOLD OVER NICKEL

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QM55001SR Overview

Use the download button to access the QM55001SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM550, or try a keyword search, such as Other Telecom ICs

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
