Part Image

QM78207TR13 - Qorvo

Description: RF Modules 5G n77 UHB S-PAD w/ LNA , 3.3 GHz to 4.2 GHz , 500 mV , 5V , -20C +85C

Download QM78207TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

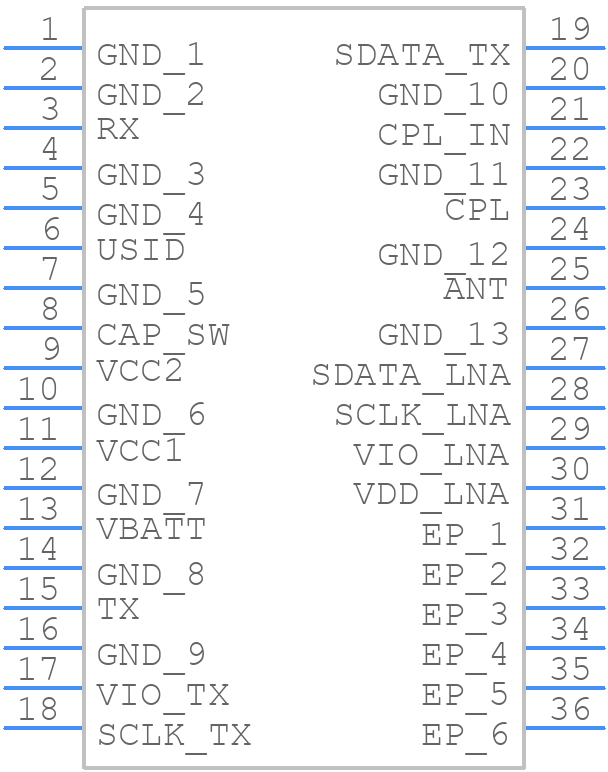

Symbol
QM78207TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QM78207TR13 - Qorvo PCB footprint - Other - Other - 3.0mm x 5.0mm x 0.7mm
click to zoom
3D Models
QM78207TR13 - Qorvo - 3D model - Other - 3.0mm x 5.0mm x 0.7mm
click to zoom

QM78207TR13 Details

  • Manufacturer Part Number:

    QM78207TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.G

  • HTS Code:

    8517.62.00.90

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2020-08-05

  • Manufacturer:

    Qorvo

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QM78207TR13 Overview

Use the download button to access the QM78207TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QM782, or try a keyword search, such as Other Telecom ICs

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
