QPL8831TR13 - Qorvo

Description: • High Gain: 17dB at 1218 MHz • 5 – 1218 MHz BW • OIP3: +46 dBm, 50 – 1218 MHz • OP1dB: +25 dBm, 50 – 1218 MHz • Low Noise Figure: 3.1 dB, Full Band • Excellent Composite Distortion • pHEMT GaAs device technologies • Compact Size: 8-pin SOIC • Power Consumption: 5 V, 280 mA (1.4 W) 8V, 360mA (2.9W)

Download QPL8831TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

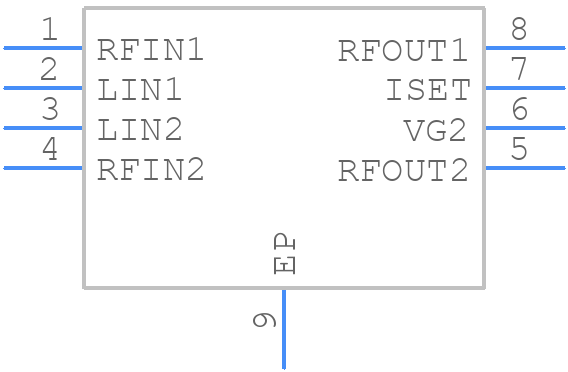

QPL8831TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPL8831TR13 - Qorvo PCB footprint - Small Outline Packages - Small Outline Packages - QPL1811SR
click to zoom
3D Models
QPL8831TR13 - Qorvo - 3D model - Small Outline Packages - QPL1811SR
click to zoom

QPL8831TR13 Details

  • Manufacturer Part Number:

    QPL8831TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    5A991.G

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.84

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    15 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1218 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.29

QPL8831TR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a reference design and layout guidelines in their application notes and design guides. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize parasitic effects.
  • Qorvo provides a set of recommended biasing and tuning procedures in their application notes. Additionally, engineers can use simulation tools and models provided by Qorvo to optimize the design for their specific application.
  • Qorvo performs a range of reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing, to ensure the device meets industry standards and customer requirements.
  • Qorvo provides guidelines and recommendations for EMC and EMI compliance in their application notes and design guides. Engineers should follow these guidelines and use shielding, filtering, and other techniques to minimize EMI and ensure EMC compliance.
  • Qorvo provides guidelines for storage and handling in their datasheet and packaging information. Engineers should follow these guidelines to prevent damage and ensure reliability, including storing the devices in a dry, cool place, and handling them with anti-static precautions.
