Qorvo provides a recommended PCB layout guide for the QPL8832TR13, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The QPL8832TR13 has a thermal pad on the bottom of the package, which requires proper thermal management to prevent overheating. A thermal via or a heat sink can be used to dissipate heat. The recommended thermal resistance (θJA) is 25°C/W. Ensure that the PCB design and thermal management strategy meet this requirement.
The QPL8832TR13 requires input and output matching networks to achieve optimal performance. Qorvo provides a recommended matching network design in the application note or evaluation board documentation. The matching network should be designed to match the 50-ohm impedance of the device.
Common issues with QPL8832TR13 can be troubleshooted by checking the PCB layout, component values, and soldering quality. Ensure that the input and output matching networks are correctly implemented, and the device is properly biased. Also, check for any signs of overheating, and verify that the power supply voltage and current are within the recommended specifications.
Yes, the QPL8832TR13 is compatible with lead-free soldering processes. Qorvo ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL8832TR13 Overview

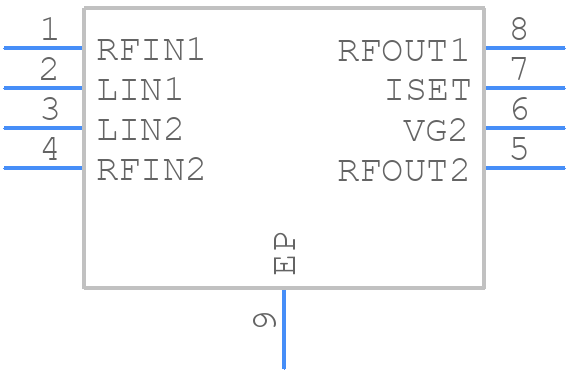

Use the download button to access the QPL8832TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL88,
or try a keyword search, such as RF/Microwave Amplifiers
