Qorvo provides a recommended PCB layout guide for the QPL8834SR, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The QPL8834SR has a thermal pad on the bottom of the package, which needs to be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the surrounding components at a safe distance to prevent thermal coupling.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at higher temperatures. For optimal performance, it's recommended to operate the QPL8834SR within a temperature range of -20°C to 70°C.
To troubleshoot issues with QPL8834SR, start by verifying the PCB layout and component placement against the recommended layout guide. Check for any signs of damage, such as cracks or corrosion, and ensure that the device is properly soldered. Use a spectrum analyzer or oscilloscope to identify any unusual frequency components or noise patterns. Consult Qorvo's application notes and technical support resources for further guidance.
While the QPL8834SR is designed for 50Ω systems, it can be used in non-50Ω systems with some caveats. The device's input and output impedance may need to be matched to the system impedance using external components, such as resistors or transformers. Consult Qorvo's application notes and technical support resources for guidance on impedance matching and potential performance impacts.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL8834SR Overview

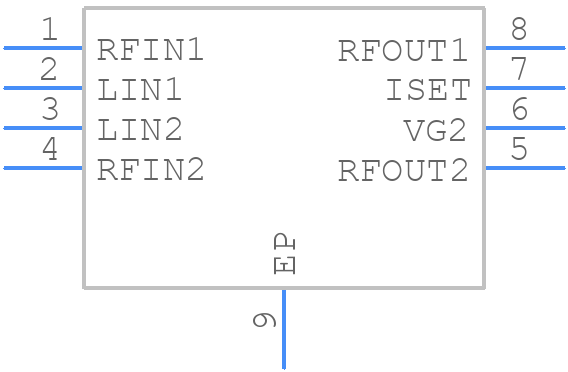

Use the download button to access the QPL8834SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL88,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
