Qorvo provides a recommended PCB layout guide for the QPL8834TR13, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The QPL8834TR13 has a thermal pad on the bottom of the package, which requires proper thermal management to prevent overheating. A thermal via or a heat sink can be used to dissipate heat. The recommended thermal resistance (θJA) is 25°C/W. Ensure that the PCB design and thermal management strategy are adequate to keep the junction temperature below 125°C.
The QPL8834TR13 requires input and output matching networks to achieve optimal performance. Qorvo provides a recommended matching network design in the application note, which includes component values and layout guidelines. The matching network should be optimized for the specific frequency band and impedance requirements of the application.
The QPL8834TR13 is a ruggedized device, but it still requires proper handling and assembly to ensure reliability in harsh environments. Follow Qorvo's recommended assembly and handling procedures, and ensure that the device is properly soldered and cleaned. Additionally, consider using conformal coating and potting compounds to protect the device from moisture and mechanical stress.
The QPL8834TR13 is a sensitive device that requires proper ESD protection and handling. Follow Qorvo's recommended ESD handling procedures, which include using ESD-safe workstations, wrist straps, and packaging materials. Ensure that the device is properly grounded during handling and assembly to prevent electrostatic discharge damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL8834TR13 Overview

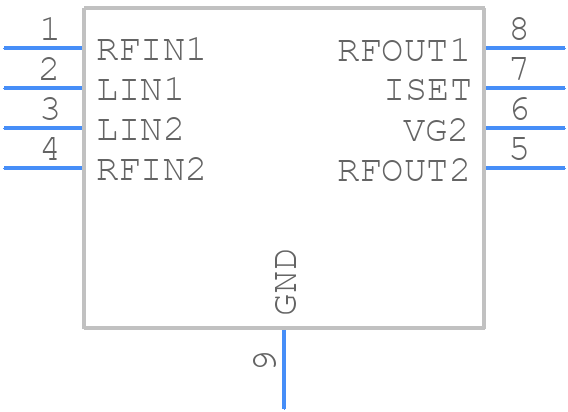

Use the download button to access the QPL8834TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL88,
or try a keyword search, such as RF/Microwave Amplifiers
