- Part Number QPQ1904TR13
- Manufacturer Qorvo
- Pin Count 12
- Part Category Filter
- Package Category Other
- Footprint Name Other - 3 Pad 1.7x1.1mm Laminate
- Released Date Jan 7, 2025
- Last Modified Date Feb 28, 2025 4:39 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPQ1904TR13 Details
-
Manufacturer Part Number:
QPQ1904TR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
24 Weeks
-
Manufacturer:
Qorvo
-
JESD-609 Code:
e4
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
260
-
Telecom IC Type:
TELECOM CIRCUIT
-
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
QPQ1904TR13 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The QPQ1904TR13 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat to the opposite side of the board. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling capabilities at higher temperatures to ensure reliability and prevent thermal runaway. Consult Qorvo's application notes for more information on thermal derating.
-
Qorvo provides impedance data in the datasheet, but it's essential to consider the specific application and PCB layout when designing the impedance matching network. Qorvo's application notes and simulation tools, such as Qorvo's GaN Simulator, can help with impedance matching and optimization.
-
The QPQ1904TR13 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPQ1904TR13 Overview

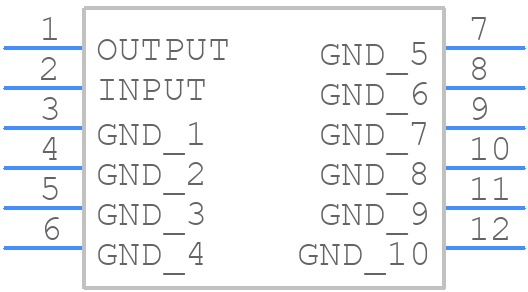

Use the download button to access the QPQ1904TR13 schematic symbol, PCB footprint, and 3D model.
