Description:The QS3VH251 HotSwitch Quad 2:1 multiplexer/demultiplexer is a high bandwidth bus switch with very low ON resistance, resulting in under 250ps propagation delay through the switch. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH251 ideal for high performance comminucation applications. The QS3VH251 operates from -40C to +85C.
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize signal integrity issues.
Renesas recommends using external circuitry to handle hot-swapping or hot-plugging, such as using a dedicated hot-swap controller or implementing a power-on reset circuit to ensure safe and reliable operation.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance and power consumption at extreme temperatures to ensure reliable operation and prevent thermal damage.
Renesas does not specifically design the QS3VH251PAG8 for radiation-hardened or high-reliability applications. However, they do offer other products with enhanced radiation tolerance and reliability features. Engineers should consult with Renesas or a qualified radiation effects expert to determine the suitability of the QS3VH251PAG8 for such applications.
Renesas provides a range of troubleshooting resources, including application notes, FAQs, and technical support forums. Engineers can also use industry-standard debugging tools, such as logic analyzers and oscilloscopes, to identify and isolate issues. In some cases, Renesas may also offer custom support or consulting services to help resolve complex issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3VH251PAG8 Overview

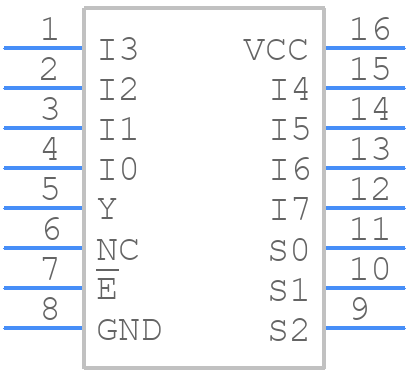

Use the download button to access the QS3VH251PAG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS3VH,
or try a keyword search, such as Bus Driver/Transceivers
