QS5U12TR - ROHM Semiconductor

Description: 2.5V Drive Nch+SBD MOSFET

Download QS5U12TR Model

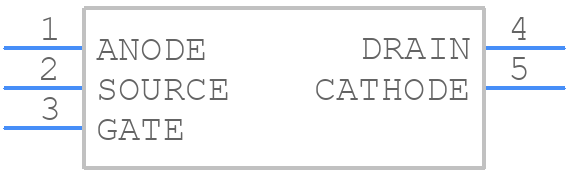

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS5U12TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSMT-5
click to zoom
3D Models
QS5U12TR - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - TSMT-5
click to zoom

QS5U12TR Details

  • Manufacturer Part Number:

    QS5U12TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TSMT5, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    2 A

  • Drain-source On Resistance-Max:

    0.154 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QS5U12TR Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating curves in the datasheet for operation above 85°C. Additionally, ensure good thermal design, and consider using a heat sink or thermal interface material to reduce junction temperature.
  • Although the datasheet specifies a maximum input voltage of 5.5V, ROHM recommends limiting the input voltage to 5V to ensure reliable operation and prevent damage to the internal ESD protection diodes.
  • Yes, the QS5U12TR can be used in a 3.3V system, but the output voltage will be limited to 3.3V. Ensure that the input voltage is within the recommended range, and consider using an external voltage regulator if necessary.
  • ROHM recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensuring that all equipment and tools are properly grounded. Avoid touching the device pins or handling the device in a way that could generate static electricity.
