ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
ROHM recommends following the derating guidelines in the datasheet, using a heat sink if necessary, and ensuring good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the temperature and adjust the system accordingly.
While the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device.
Yes, the QS6K1FRATR is suitable for high-frequency switching applications. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure that the system is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
ROHM recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an ESD-protected environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS6K1FRATR Overview

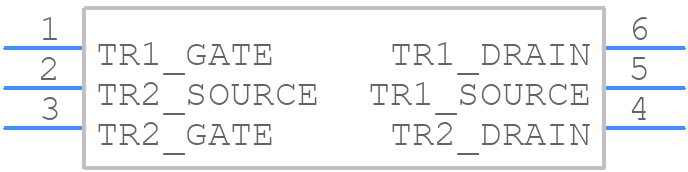

Use the download button to access the QS6K1FRATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS6K1,
or try a keyword search, such as Small Signal Field-Effect Transistors
