A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material to improve heat transfer.
Handle the device by the body, avoiding touching the leads or pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent ESD damage.
Yes, the QS6K21FRATR is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, additional testing and validation may be required for specific use cases.
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, component selection, and soldering. Use oscilloscopes and logic analyzers to debug the circuit. Contact ROHM Semiconductor's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS6K21FRATR Overview

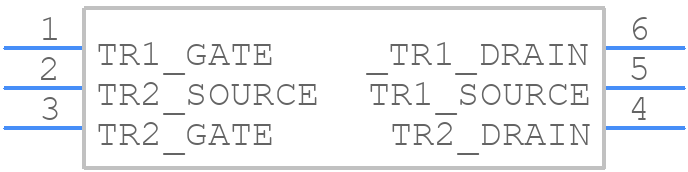

Use the download button to access the QS6K21FRATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS6K2,
or try a keyword search, such as Small Signal Field-Effect Transistors
