QS6M3TR - ROHM Semiconductor

Description: MOSFET,N & P-channel,30/20V,1.5A,TSMT6 ROHM QS6M3TR Dual N/P-channel MOSFET Transistor, ±1.5 A, -20 V, 30 V, 6-Pin TSMT

Download QS6M3TR Model

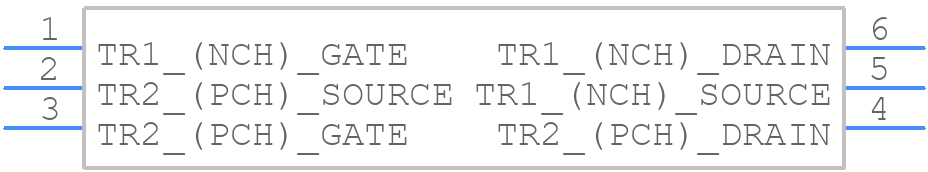

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS6M3TR - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSMT6_2020
click to zoom
3D Models
QS6M3TR - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - TSMT6_2020
click to zoom

QS6M3TR Details

  • Manufacturer Part Number:

    QS6M3TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    1.5 A

  • Drain-source On Resistance-Max:

    0.245 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QS6M3TR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for QS6M3TR is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger ceramic capacitor for the output capacitor (Cout) and a 1uF or larger ceramic capacitor for the input capacitor (Cin).
  • The maximum output current that QS6M3TR can provide is 500mA.
  • To reduce the noise and ripple in the output voltage, it is recommended to use a low-ESR capacitor for Cout and to add a noise filter capacitor (e.g. 10nF) between the output pin and GND.
  • The thermal shutdown temperature of QS6M3TR is typically 150°C.
