- Part Number QS6U22TR
- Manufacturer ROHM Semiconductor
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TSMT6(H=1mm)
- Released Date Sep 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QS6U22TR Details
-
Manufacturer Part Number:
QS6U22TR
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
TSMT6, 6 PIN
-
Pin Count:
6
-
ECCN Code:
EAR99
-
Manufacturer:
ROHM Semiconductor
-
YTEOL:
3
-
Configuration:
SINGLE WITH BUILT-IN DIODE
-
DS Breakdown Voltage-Min:
20 V
QS6U22TR Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the QS6U22TR is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
-
To ensure proper biasing, follow the recommended voltage and current ratings specified in the datasheet. Typically, this involves connecting the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Additionally, ensure that the input signals are within the recommended voltage range to prevent damage or malfunction.
-
The maximum allowable power dissipation for the QS6U22TR is typically specified in the datasheet as 500mW. However, this value may vary depending on the specific application and operating conditions. It's essential to calculate the power dissipation based on the device's voltage and current ratings to ensure reliable operation.
-
The QS6U22TR is a high-speed device, but its frequency response is limited. According to the datasheet, the device is suitable for applications up to 100MHz. However, it's crucial to evaluate the device's performance at the specific frequency of interest and consider factors like signal integrity, noise, and jitter to ensure reliable operation.
-
The QS6U22TR has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. Use anti-static wrist straps, mats, and packaging materials to prevent electrostatic discharge. Additionally, ensure that the device is properly grounded during assembly and testing.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QS6U22TR Overview

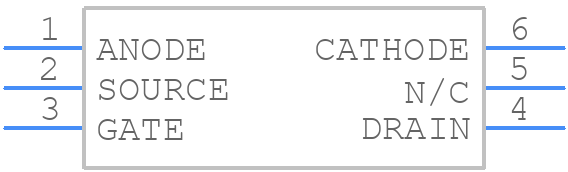

Use the download button to access the QS6U22TR schematic symbol, PCB footprint, and 3D model.
