R5439K328JA - Nisshinbo

Description: High Voltage Tolerant Process Absolute Maximum Ratings32 V Low Supply Current During Operation, Cell-voltage: 4.15 V, 4-CellsTyp. 4.0 µA Shutdown 1 Typ. 2.5 µA Shutdown 2 (Standby)· Max. 0.2 µA Output Voltage Built-in Regulator 2.9 V to 3.7 V, 0.1 V step Output Voltage Accuracy ±2% COUT Output (CMOS Output, Active-high)Typ. 4.7 V

Download R5439K328JA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

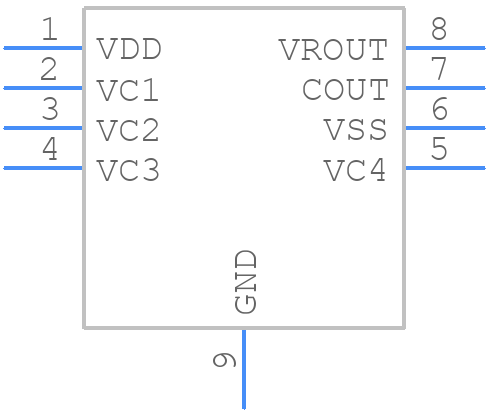

R5439K328JA - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
R5439K328JA - Nisshinbo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN (PLP) 2020-8 Package Dimensions
click to zoom
3D Models
R5439K328JA - Nisshinbo - 3D model - Small Outline No-lead - DFN (PLP) 2020-8 Package Dimensions
click to zoom

R5439K328JA Details

  • Manufacturer Part Number:

    R5439K328JA

  • Manufacturer:

    Nisshinbo Micro Devices

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5439K328JA Overview

Use the download button to access the R5439K328JA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5439, or try a keyword search, such as Power Management Circuits
