The recommended PCB layout for optimal thermal performance involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and implement thermal management techniques such as airflow or heat pipes.
The recommended soldering conditions for the R5486K508CM-TR include a peak temperature of 260°C, a soldering time of 10 seconds or less, and using a solder with a melting point of 217°C or higher.
While the R5486K508CM-TR is designed to be robust, it's still important to follow proper mounting and soldering techniques to ensure reliability in high-vibration environments. Additionally, consider using vibration-dampening materials or potting compounds to reduce stress on the component.
The R5486K508CM-TR is sensitive to electrostatic discharge (ESD). To prevent damage, handle the component in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding procedures when handling the component.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
R5486K508CM-TR Overview

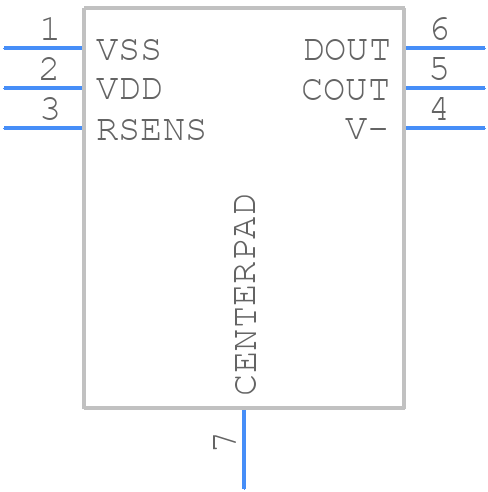

Use the download button to access the R5486K508CM-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like R5486,
or try a keyword search, such as Power Management Circuits
